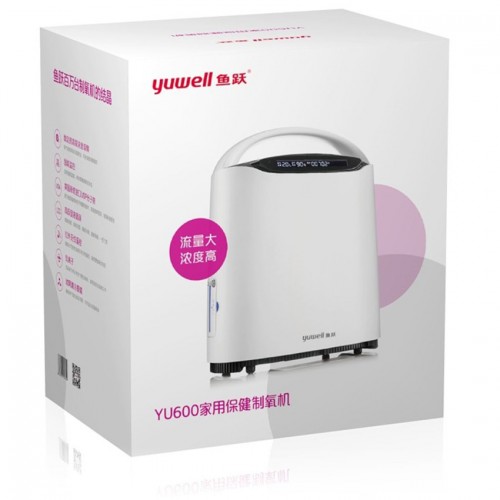

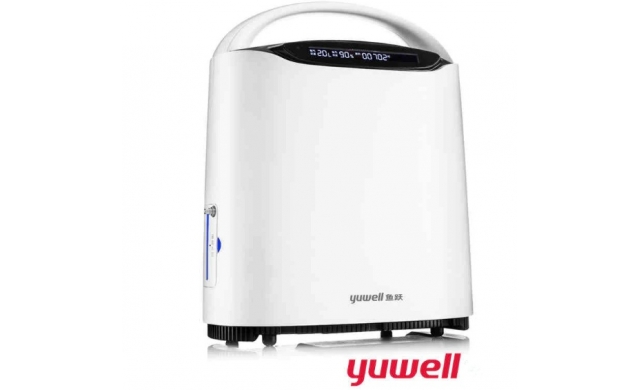

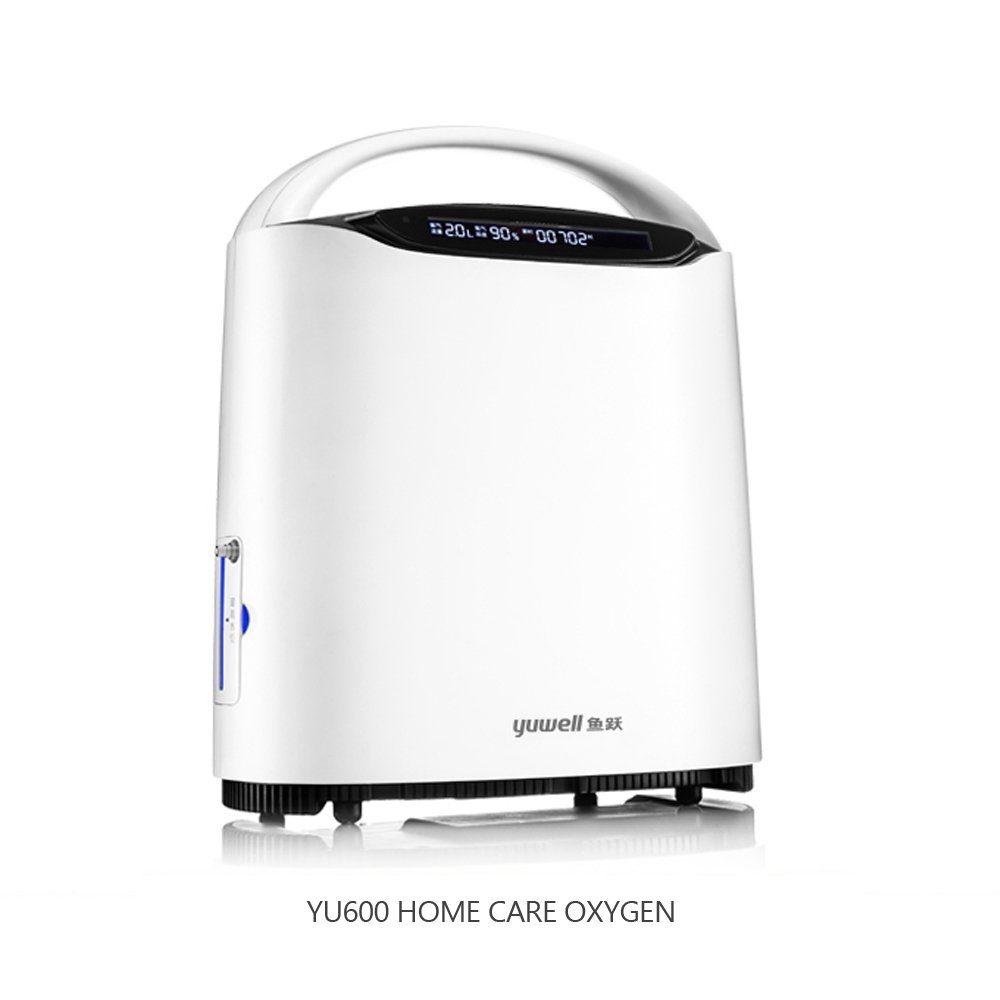

Yuwell YU600 Portable Oxygen Concentrator for Homecare

The YU600 is a compact, table-top oxygen generator for general use at home. It is used for relaxation, to recover from fatigue or exposure to high pollution. The LCD display and buttons on the top of the device allow for easy control of the device. It’s flow rate ranges from 1 – 3 LPM.

SPECIFICATIONS:

• Power Supply: □AC120V±10% □AC22OV±1O% LIACHOV ± 10% □50Hz D60Hz
• Input Power: 150VA
• Oxygen Concentration: 70%~90%
• Flow Range: 1 ~ 3L/min
• Noise: <45dB(A)
• Weight: 8kg
• Dimension: W37.7cm (14.8″) x DI 9cm (7.5U) x H31.7cm (12.5″)

• Safety system:
• Current overload or loose connection, automatic shutdown;
• Compressor with abnormal high temperature, automatic shutdown;
• Electric classification: Class II
• Work system: work continuously.

NORMAL OPERATION CONDITIONS：

• Temperature range: 10°C ~ 40°C (50+ ~ 104°F);
• Relative humidity: 30% ~ 75%;
• Atmosphere pressure: 860hPa – 1060hPa(12.47psi ~ 15.37psi);

NOTE:
When storage temperature is below 5°C, please keep the equipment in normal working condition for at least 4 hours before using.

Transportation and storage conditions：

• Temperature range: -20°C ~ +60°C(-68°F ~ +140°F),
• Relative humidity: 10% ~ 93%, no condensation.
• Atmosphere pressure: 700hPa ~ 1060hPa(10.15psi ~ 15.37psi).

NOTE:
Oxygen concentrator should be stored with out intense sunlight no corrosive gas and in a well ventilated room, avoid jolt and inverted recumbent transport.
