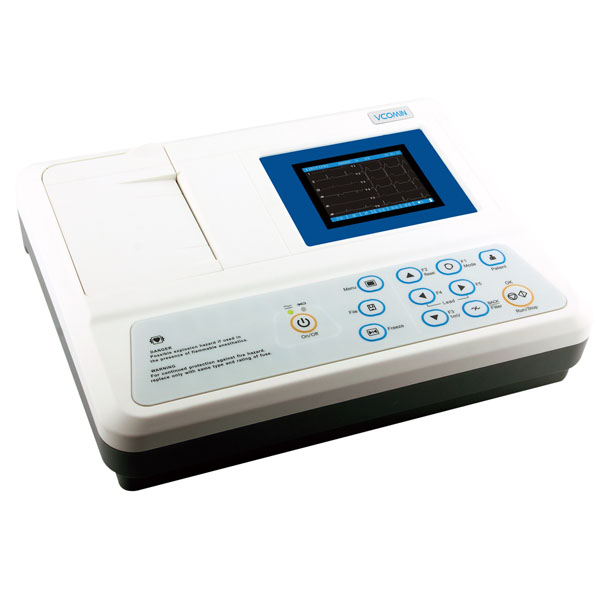

Vcomin Portable 3 channel ECG Machine ECG-8031

Vcomin Portable 3 channel ECG Machine ECG-8031:

1. Vcomin portable 3 channel ecg Features:

• 3 channel ECG machine with interpretation
  ●Manual/Auto/Arrhythmia Analysis Modes
  ● 80mm 3-ch recording with rhythm lead
  ● Built in rechargeable Li-ion battery
  ● Adaptor 110-230V, 50/60Hz AC power supply
  ● Built in USB/RS232 interface(ECGNET software Optional)

1. Technical Specification

• Lead:standard 12 leads
• Calibrating voltage: 1mV±2％
• Voltage tolerance: ≥±500mV
• Time constant: ≥3.2s
• Frequency response: 0.05～160Hz(-3db)
• Noise level: ＜15μVp-p
• Sensitivity valve: ≤20μV
• Sensitivity: 2.5, 5, 10, 20mm/mV
• Inter-channel Interference: ≤0.5mm
• Paper speed: 6.25, 12.5, 25, 50mm/s（±3％）
• Input dynamic range:±10Vpp
• Filter:

  AC Filter : 50Hz / 60Hz

  EMG Filter : 25Hz / 45Hz

  Anti-Drift Filter : 0.15Hz (Adaptive)

• CMMR: ≥120dB (with AC filter)
• Input Impedance: ≥50MΩ
• Inputcircuit current: ≤0.05μA
• Patient current leakage: ＜10μA
• Lead acquisition: 12bit/1000Hz（synchronously 12 leads）
• Work modes: MAN、AUTO、ANALYSIS modes
• Input circuit: floating; protection circuit against defibrillatoreffect
• Display:3.5 inch colour LCD
• ECG waveform,100patient save/replay

1. Vcomin portable 3 channel ecg Standard Configuration

• Patient cable1 set
• Limb electrode               4 sets
• Chest electrodes6 sets
• Grounding cable1 set
• Paper axis1 set
• Thermal paper1 set
• Fuse2 sets
• 3-cord power cord1 set
• AC Adaptor1 set
