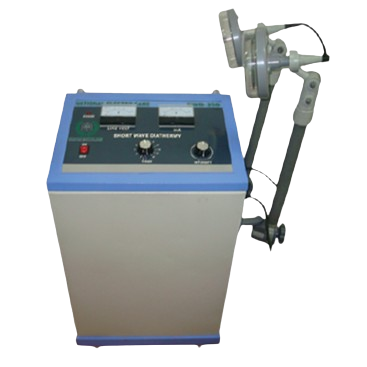

Shortwave Diathermy 500

৳ 160,000৳ 168,000 (-5%)

In stock

Shortwave Diathermy 500

Brand: Physiocare

Model: SWD-500

Origin: India

Specification

Specification
Values
Main Supply
220-240V/50Hz
Operating Frequency
27.12MHz
Wavelength
11 meter
RF Power Source
Triode valve
Timer
Digital (0 – 99 min) with auto alarm
Weight
40 kg
Dimensions (H x W x L)
90 x 46 x 43 cm

Shortwave Diathermy 500

Description

The term ‘Diathermy’ means to heat through Diathermy is applied using electromagnetic waves that produce heat, but are non-ionizing.Short Wave Diathermy is a heavy-duty machine mounted on castors for mobility in Hospitals and Clinics. It has a storage compartment with a locking arrangement for keeping the accessories. Radio waves in the short wave band have a frequency in the range of 10 MHz-500MHz.The Short Wave Diathermy is used widely to utilize the frequency of 27.12 MHz and wavelength greater than 11m. There are two Main Circuits of Short Wave Diathermy, which are coupled to get the proper effect. There are two Main Circuits of Short Wave Diathermy, which are coupled to get the proper effect.:- Oscillator Circuit and Patient circuit & nbsp.
shortwave-diathermy-500w

Uses of Short Wave Diathermy

Physiological Effects of short wave diathermy

The Principle effect of short Wave diathermy on the body is the production of heat in the tissues. Maximum heat is produced in the fat tissues, which results in the rise of temperature. The rise in temperature causes the relaxation of muscles and increases the efficiency of their action. This increases blood supply ensuring the optimum condition for muscle contraction.
Therapeutic effects of short-wave diathermy are used for the treatment of both deep and superficial structures.
  • Muscle Spasm: It is reduced by shortwave diathermy. This is helpful for pain relief.
  • Inflammation: Chronic inflammation is resolved as a result of an increase in blood circulation, and aids the resorption of edema exudates.
  • Infection: It increases the number of white blood cells and antibodies to fight the infective organism, thereby enabling the control of chronic infection.
  • Delayed Healing: To promote the healing of open skin areas there is an increase in cutaneous circulation.
  • Fibrosis: Heat increases the extensibility of fibrous tissues like tendons, joint capsules, and scars. This effect is produced by temperature increases within the therapeutic range.

Standard Accessories

  • One Pair Pad With Felt & Cover
  • One Pair Wire
  • One Main Cord
  • Six Pieces 6A Fuses
  • One Dust Cover

Optional Accessories

  • Disc Electrode



Brand

Physiocare
