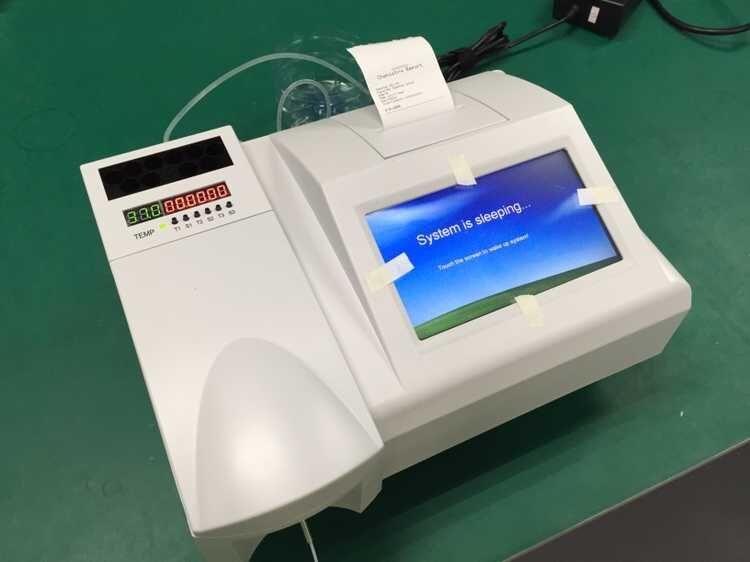

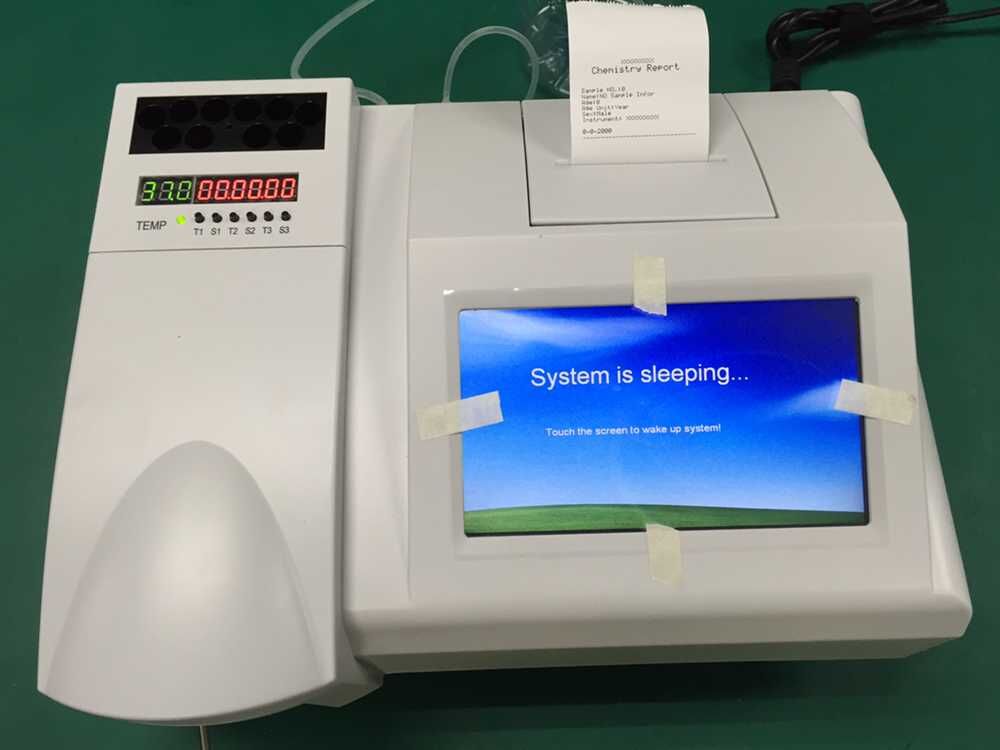

MyLab BA-20 Semi Automatic Biochemistry Analyzer

Mylab BA-20 Semi Automatic Biochemistry Analyzer

8 inch Color LCD , Touch screen Display Flow cell and Cuvette test mode compatible Real time curve showing 7 wavelength , 90 test item pre-programmed Memory for 10,000 sample results Light source hibernate function making lamp life longer RS232 interface, PC connecting Test mode: Kinetic, End point, Two point, Absorbance Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position Wavelength precision: ±2 nm, width ≤ 10nm Absorbance range: 0~4.500 Abs

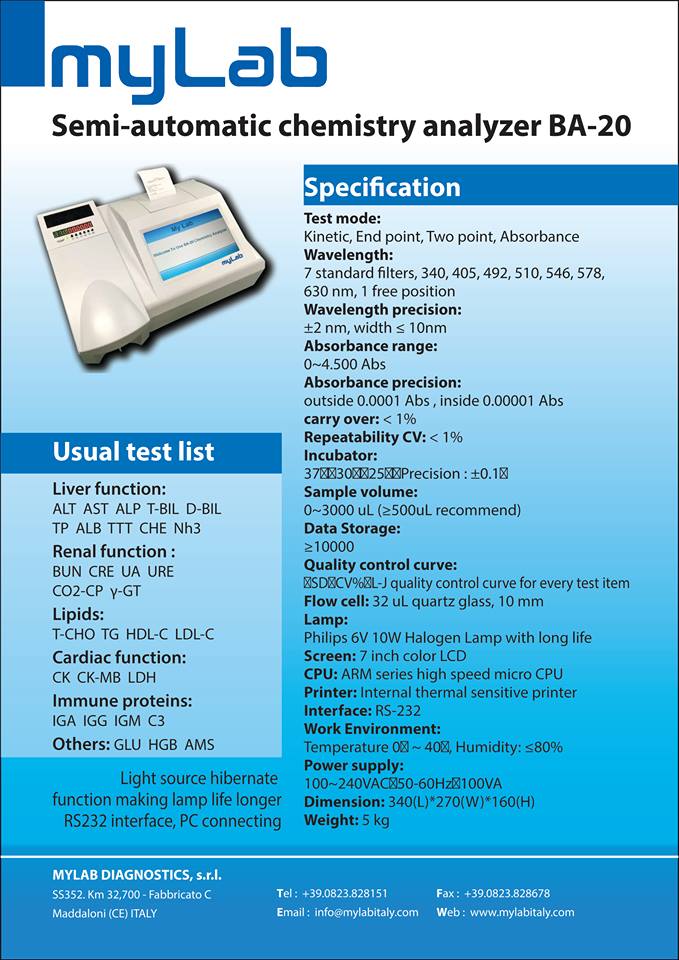

Technical Specifications

• Reading Cuvette: Both through cell and direct reading cuvette
• Incubating Positions: 20 incubation positions
• Photometric System:
  Light Source: 6V 10W long-life halogen lamp
  Filters: 7standard filters from 340 to 800nm, 2 more open filter positions; ±2 nm pass-band
  Wavelength Accuracy: ±2 nm
• Measuring System: Measuring Range: 0-3.500 O.D
  Photometric Linearity: ±2% from 0 to 2.000 O.D.
  Photometric Accuracy: ±2% from 0 to 2.000 O.D.
  Drift: less than 0.001 O.D.
  Carry Over: ≤1%
• Incubator Temperature control: 25degree.centigrade ,30degree.centigrade ,37degree.centigrade, Precision:±0.1degree.centigrade
• Reagent Volume: 200-500 ul
• Printer: Built-in thermal printer, 57mm width paper
• Power Supply: 110V 60HZ / 220V 50HZ, 60VA
• Dimensions: 34cm*38cm*18cm
• Weight: 8.5kg



Usual test list

Liver function:

ALT  AST ALP  T-BIL D-BIL  TP ALB TTT CHE  Nh3

Renal function :

BUN  CRE UA  URE CO2-CP  γ-GT

Lipids:

T-CHO  TG HDL-C  LDL-C

Cardiac function:

CK  CK-MB  LDH

Immune proteins:

IGA  IGG IGM  C3

Others:

GLU  HGB AMS
