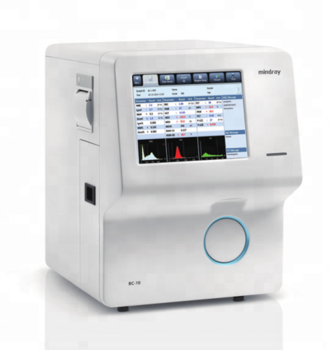

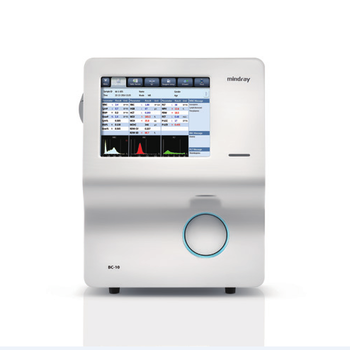

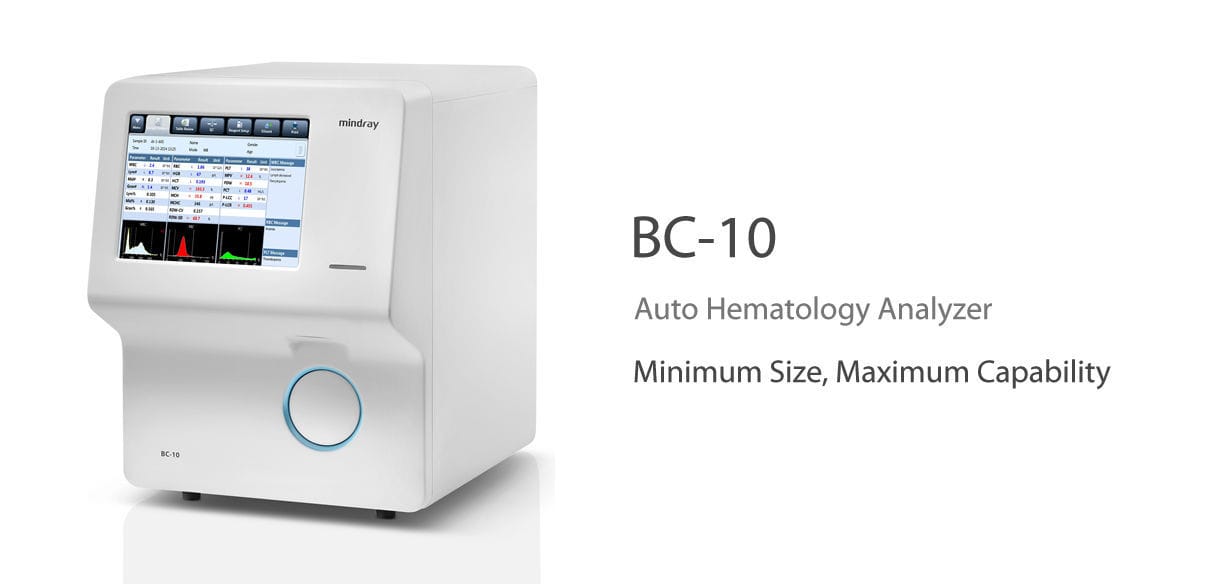

Mindray BC-10 Auto Hematology Analyzer
৳ 250,000৳ 320,000 (-22%)
· CBC+3-DIFF, 20 parameters+3Histograms
· Throughput: up to 30 samples per hour
· 8.4 inch TFT touch screen
· Only three reagents needed
· Open vial sampling
· Large storage capacity: up to 50,000 samples
· Original QC, calibrators and reagents
Mindray BC-10 Auto Hematology Analyzer:
At Mindray, we pride ourselves on our dedication and experience in developing better solutions for small labs. Our new 3-part hematology analyzer is the culmination of that effort. It provides small labs with more confidence in results and less turnaround time.
Technical Specifications:
Impedance method for WBC, RBC and PLT counting
Cyanide free reagent for hemoglobin test
20 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC,
HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR
3 histograms for WBC, RBC and PLT
Sample Volume
Parameter Linearity Range Precision (CV %) Carryover
WBC(10 9 /L) 0-100 ≤3.5% (4.0-6.9) ≤0.5％
≤2.0% (7.0-15.0)
RBC(10 12 /L) 0-8.00 ≤2.0% (3.50-6.5) ≤0.5％
HGB(g/L) 0-280 ≤2.0% (100-180) ≤0.5％
MCV(fL) ≤1.0% (70.0-110.0) ≤0.5％
PLT(10 9 /L) 0-1000 ≤5.0% (100-500) ≤1.0％
Throughput
30 samples per hour
Display
8.4 inch TFT Touch Screen
Multi-language
Chinese, English, Spanish, Portuguese, Russian, French, Bahasa
Indonesia
Data Storage Capacity
Up to 50,000 results including numeric and graphical information
Communication
LAN Port supports HL7 protocol
Support bi-directional LIS
Brand
Mindray
