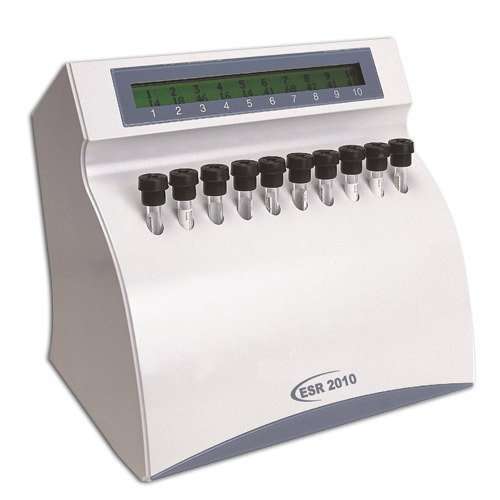

Mindray Auto ESR Analyzer ESR-2010

Original price was: 140,000.00৳ .Current price is: 90,000.00৳ .

Out of stock

Number of Channels 10
Measurement Range(mm/hr) 1-140
Power Supply(V) 110
Brand Mindray
Results Highly reliable results
Measuring time 30 min, 20 tests per hr

01405100400

Free Delivery

For order. over 15,000 Taka

7 Days Return

If products have problems

Secure Payment

100% secure online payment.

Dedicated Support

Dedicated online and offline support

ESR 2010 Automated Analyzer of Erythrocyte Sedimentation Rate

Backed by the consistent efforts of our dexterous workforce, we are offering a broad collection of ESR Analyzer. The offered analyzer is given in customized options as per the need of customers. This analyzer is used for easy erythrocyte sedimentation rate analysis. Our offered analyzer is checked in terms of quality in order to dispatch a flawless range to the customer’s end.

  • ESR 2010 V4.0, is a Small; Compact; Desktop Random Access Analyzer
  • 1 hour ESR results in 30 minutes, automatically adjusted to 18 °C (as per Manley)
  • Holds 10 ESR tubes and provides 20 results per hour.
  • Free – the closed system of total blood hazard, useful for the creation of a safe and healthy environment for the user
  • No timing; temperature error and human error
  • Good correlation to 1 hour Modified Westergren method
  • Optional Stylus Printer graphical printing of results
  • ESR results from 1 – 140 mm/hr is displayed on the LCD. The results are printed on the Stylus Printer at more than 140 mm/hr if connected to the analyzer.

  • Area of application: Blood Sedimentation Rate Analysis
  • ESR tubes: 9 * 120 mm, 1.28ml Vacuum / Non – vacuum
  • ESR Loading Capacity: 10 samples maximum
  • Loading Pattern: Random Access (V4.0) ; 10 samples batch (V6.0)
  • Duration: 20 samples per hour
  • Analysis time: 30 minutes (V4.0) and 30 & 60 minutes (V6.0)
  • Results: in Westergren mm / h (by interpolation)
  • Test tube: 1.1ml ~ 1.28 ml blood (non – vacuum ESR tube)
  • Temperature correction: autocorrected results to 18 ° C (Manley Table)
  • Principle of measurement: infrarot (IR) detection, transmission reading initially and during 30/30 & 60 minutes of sedimentation Reading resolution: + /- 0,2 mm ;
  • Result resolution: + /- 1 mm Measurement range: 1 – 140 mm / h *
  • Reproducibility: C.V < 5% Display: LCD with backlight interface: LPT
  • Standard operating temperature of the printer: 15 °C to 30 °C
  • Dimensions (w x h x d): 22 cm x 21.6 cm x 17.5 cm Weight: 2.5 kg
  • External power supply: 110 – 220V AC
  • ESR 2010 V6.0 (Batch Analyzer) provides 1 hour and 2 hours of ESR results in 30 minutes and 60 minutes simultaneously,
  • automatically adjusted to 18 ° C.
