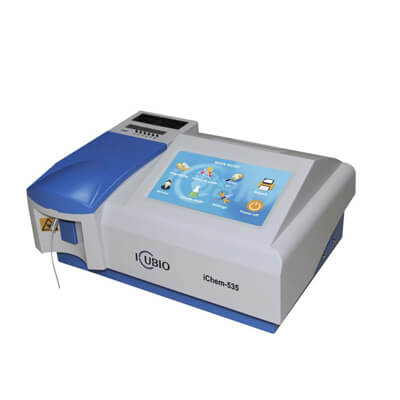

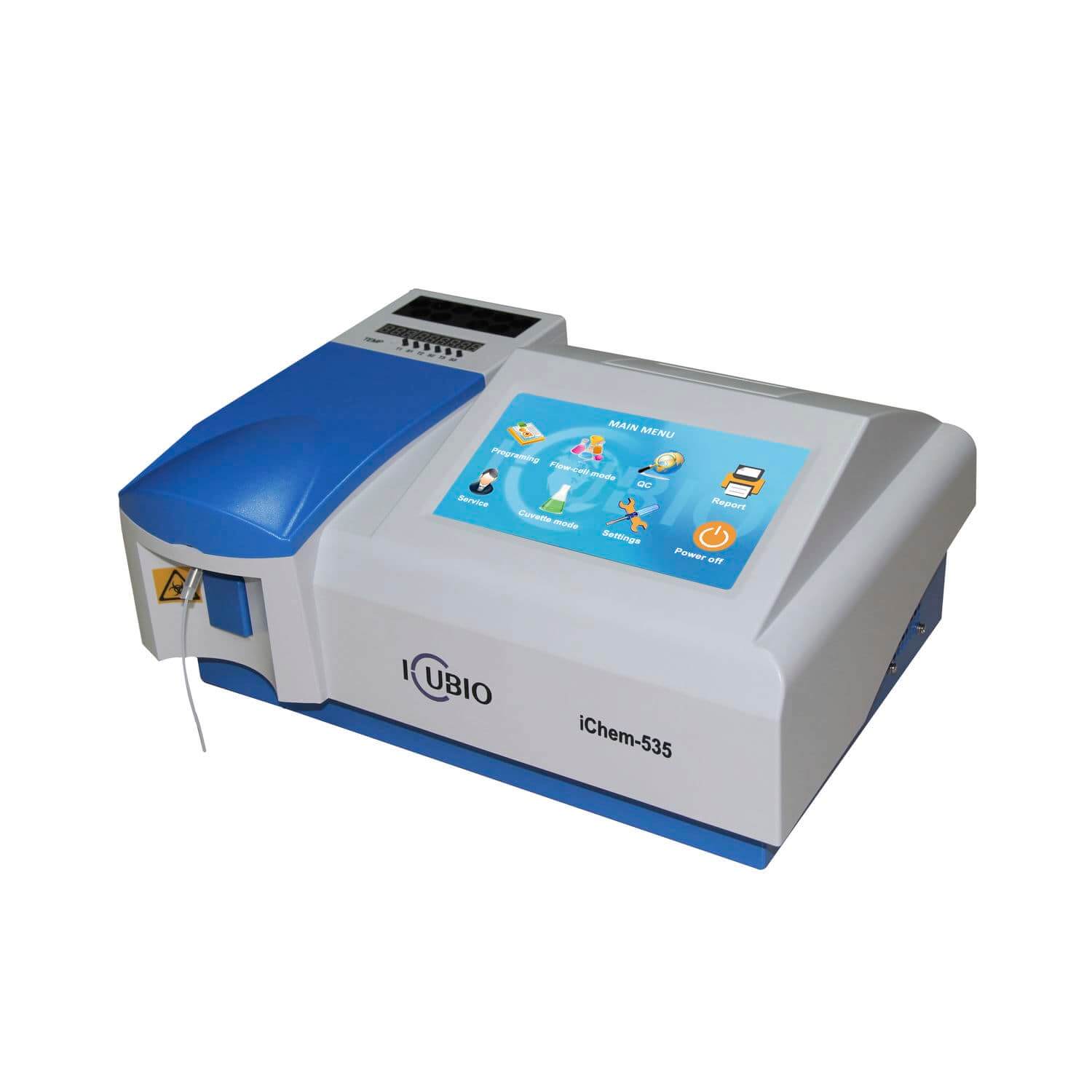

ICUBIO iChem-535 Semi-auto Chemistry

ICUBIO iChem-535 Semi-auto Chemistry:

Description

Test mode: Kinetic, Endpoint, Twopoint, Absorbance

Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630nm, 1 free position

Wavelength precision: ±2nm, width≤ 10nm

Absorbance range: 0~4.500 Abs

Absorbance precision: outside 0.0001 Abs, inside 0.00001 Abs

Carryover:  ＜1%

Repeatability CV: ＜1%

Incubator: 37℃, 30℃, 25℃, and others, Precision: ±0.1℃

Sample volume: 0~3000ul( 500ul recommend)

Data Storage: 10000

Quality control curve: X SD CV% L-J quality control curve for each test item

Flow cell: 32 ul quartz glass, 10mm

Lamp: Phillips 6V 10W Halogen Lamp with the longer lifetime

Screen: 7-inch color LCD

CPU: ARM series high-speed micro CPU

Printer: Internal thermal sensitive printer

Interface: RS-232

Work Environment: Temperature 0℃~40℃,

Humidity: 80%

Power supply: 100~240VAC, 50~60Hz, 100VA

Dimension: L340mm* W270mm*H160mm

Net Weight: 5KG Gross Weight: 10.5KG

features:

• 7-inch color-LCD Touchscreen
• Shows real-time curve
• 7 wavelength 80 test items pre-programmed
• Memory for 10,000 sample results
• Light source hibernate function to prolong lamp lifetime
• 10 Incubators (optional), 37 ± 0.3℃
• Connects to PC through the RS232 interface
• Flow-Cell & Cuvette mode available
