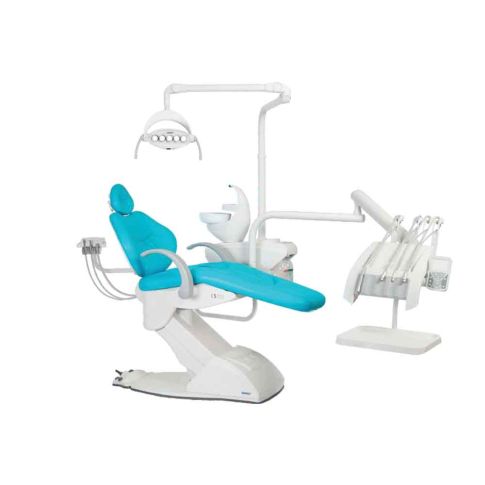

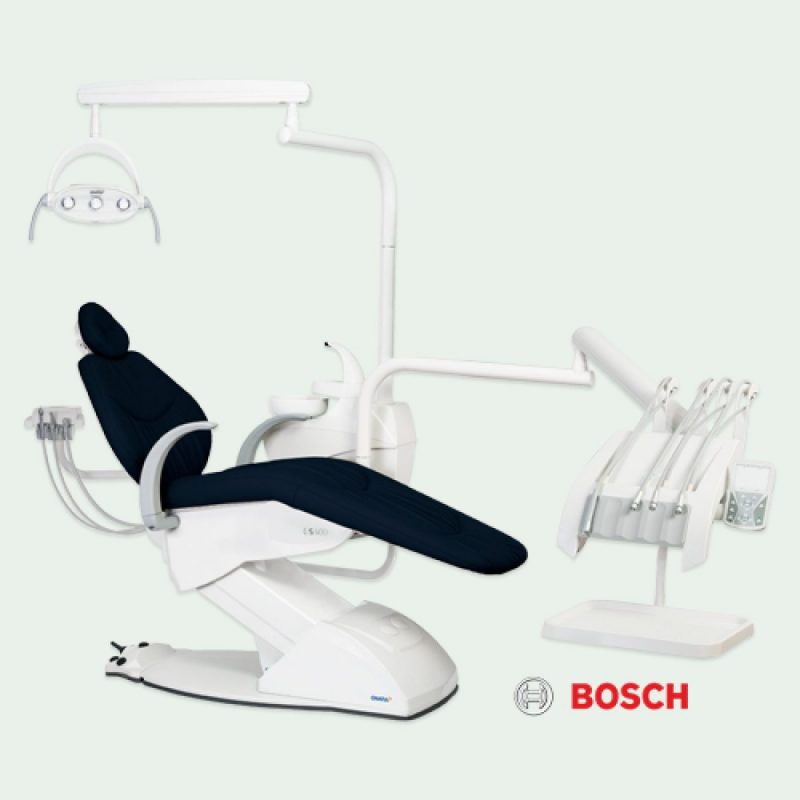

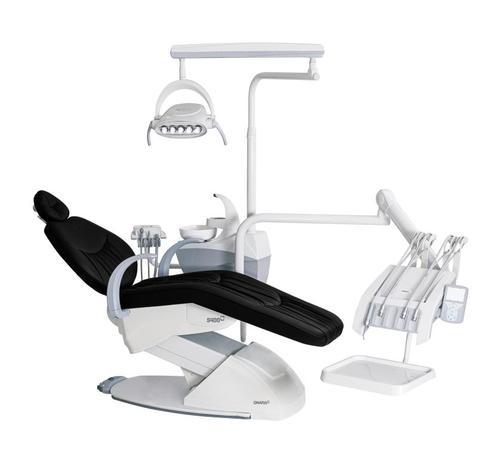

GNATUS S 400 H Dental Chair

GNATUS S 400 H Dental Chair

Backed by a team of diligent professionals, we are actively engaged in supplying a superior grade GNATUS S400 Dental Chair that is popularly known for its unmatched ergonomics, precision design, and performance. The chair is equipped with the finest grade mechanical and pneumatic tools that help perform several dental care operations including curing, and composite material delivery, among others. GNATUS S400 Dental Chair works as the main source of mechanical power to operate different sorts of dental instruments. It is easy to maintain and work with. Therefore, the demand for dental chair is high in the marketplace.

Structure -Built in solid steel, with anticorrosive treatment and coated in high-impact polystyrene, it provides greater security, resistance, and durability to the set.

Base with anti-slip debris -Does not require fixing to the floor

Integrated junction box -Optimizing space inside the office.

Displays the on/off button -located on the side of the base of the chair facilitating the access of the professional.

Upholstery -Wide padding, with lumbar support, mounted on a rigid structure covered with high resistance injected polyurethane, coated with laminated material, seamless, non-toxic, and anti-flame. Equipped with wide padding with an Easy fix system for quick and easy removal of the backrest for sanitization

Leather upholstery* -With 05 colors available. (*optional)

Support arm -Articulated patient support arm, foldable at 90º, with internal metal structure.

BUY Best Price Dental Accessories in Bangladesh



Joystick foot control:

– Three work schedules

– Return to zero position

– Spit position and return to the last position

– Blocking the movements of the chair

– Reflector activation

Lifting system

– Electro-mechanical driven Gearmotor with soft start.

– It provides smoothness in the movements.

– Eliminates the sensation of bumps when activated.

– Increases engine life.

Electronic System

– Integrated and low voltage: 24 volts.

– Allows full interface with reflector, equipment, and Salvo electronic water unit.

– Greater safety for the patient and the professional.

– Ensures greater durability of components.

Low Price Dental Instruments in Bangladesh

Easy-Fix System -Practicality in the removal of the back of the thorax, facilitating the cleaning and disinfection, through the Easy-Fix system.

Headrest -Anatomic, removable, bi-articulated and height-adjustable headrest with anterior, posterior and longitudinal movements and lever lock system

Ambidextrous -Accepts left-handed assembly.

Composition:

-Arm with pneumatic lock.

-01 triple syringe.

-02 terminals with spray for high rotation.

-01 terminal without a spray for pneumatic micromotor.

Articulable Arm -Articulable and with pneumatic locking, actuated by a button located under the body of the equipment on the side handle providing freedom of movement.

Pedal -Progressive for the actuation of the handpieces in the terminals of the equipment, which allows the control of the speed and actuation in any point of the pedal.

Triple syringe

– Rotating, removable and autoclavable nozzle

– Allows the inclusion of Kit for heated water* in the triple syringe (*optional).

Hoses -Smooth, rounded, light, and flexible, without grooves or stretch marks.

Support of the tips -With individual pneumatic drive.



Best Quality Dental Compressor Machine at Low Price

It comes with 2 Trays

-Equipment with large area to accommodate the clinical instruments

-Accompany 2 Trays that facilitate the organization of work instruments in day-to-day clinical

Painting -In white, with anticorrosive treatment.

Equipment body -Built-in high-impact polyethylene.

Handle -Bilateral with pneumatic drive.

Auxiliary tray* -Wide and stable (*optional)



PAD Command

PAD control panel with activation of the chair functions:

-Seating up and down.

-Up and down the back of the chair.

-Movement block

-Position back to zero.

-Negatoscope with light generated by semiconductor devices (LED).

-Programmable vat and scope holder water.

-Spit position and return to the last position.

-Work programming.

-Reflector performance.

Negatoscope

-Negatoscope coupled to the equipment for easy visualization of periapical and occlusal radiographic exams.

-White and uniform LED illumination.

Flush System* -Technology that performs the disinfection of the internal part of hoses (*optional)

Proximity Sensor -It features an exclusive approach sensor that automatically triggers the water flow in the spitter, providing greater convenience, comfort for the patient, safety and water savings.

Vat -Deep, removable, and with drain for solids retention and coverage to avoid spills.

The filter of debris -The debris filter is located in the body of the water unit, is easy to clean and access.

Water flow regulation system -This allows fine adjustment of water flow.

Folding water unit -Water unit and folding vat in 60º, allowing wide mobility that allows the auxiliary to approach the operative field.

Triple syringe* -Water heating* for a triple syringe (*optional).

Reach arm * -Range arm with the possibility of including up to three terminals with/without PAD commands (*optional)

Reservoir -Translucent reservoirs of 1000 ml for: Water from hand pieces and triple syringe.

DENTAL LIGHT

PERSUS LED

– Optical system with 1 LED.

– Monofocal for dental use with multi-intensity light, ranging from 8,000 to 35,000 Lux.

– With rectangular light focus, it allows a wide illumination of the operative field minimizing the need of constant repositioning of the focus.

– Head in resistant material with 620° head rotation.

– Bilateral handles in handle shape, with appropriate design for placement of sterile protectors avoiding the risk of cross-contamination.

– Cold light source: does not generate heat in the operative field.

Proximity sensor:

– The reflector is activated by the proximity sensor located at the bottom of the head, avoiding the risk of cross-contamination.

– The selection of the light intensity is also made through the proximity sensor.

– The reflector has an internal digital electronic system, which is easy and quick to program.

Cold light source -Does not generate heat in the operating field.

Rectangular light focus

– When properly positioned for illumination of the mouth, it does not generate discomfort in the eye region of the patient.

– Increasing the size of the mouth cavity illumination focus, providing a larger illumination area in the working field.

Design -Totally innovative with rounded lines, it provides a modern and harmonious look and facilitates handling.

Head

– In resistant material, with 620º rotation. It is lightweight, has high durability, and allows ample mobility in various positions.

– New design that presents a more robust body and is easy to clean.



Pullers

– Bilateral handle shape – allows isolation avoiding the risk of cross-contamination.

– Removable and autoclavable.

– The positioning of the handles makes it possible to choose the position according to the professional’s needs.

Front Protector

– Removable, made of resistant and transparent material, protects the optical system against aerosol.

– The office can be configured with one of the versions below:

Sirius Sensor 3 LEDs

– Optical system with 3 LEDs.

– Three Intensities: 10.000, 20.000 and 30.000 LUX

Sirius Sensor 3×2 LEDs

– Exclusive Yellow light Technology.

– Optical system with 5 LEDs: 3 white LEDs + 2 yellow LEDs.

– Four light intensities – white light: 15.000, 25.000 and 35.000 – LUX and yellow light: 5,000 LUX.

– Allows the use of yellow light during clinical procedures with photoactivated materials, increasing their handling time by inhibiting early polymerization of composite resins and other photoactivated materials.

(*optional)



Technical Specifications

Power supply: 127/220 V ~ (Selectable internally).

Frequency: 50/60 Hz.

Protection against electric shock: Class I equipment – Type B applied part.

Mode of operation: Continuous, with intermittent load – 1min. work and 4 min. rest.

Protection against harmful penetration of water:

IPX 0 – The entire chair, except the foot control

IPX1 – Footswitch

Power input: 200VA.

Protection fuses: F1 and F2 (127 or 220V ~) = 5A – delayed action.

Lifting capacity: A distributed load of 200 kg (patient mass + accessories and equipment).

Net Weight: 120 Kg.

Maximum load capacity applied in the trays of the equipment: 2Kg.
