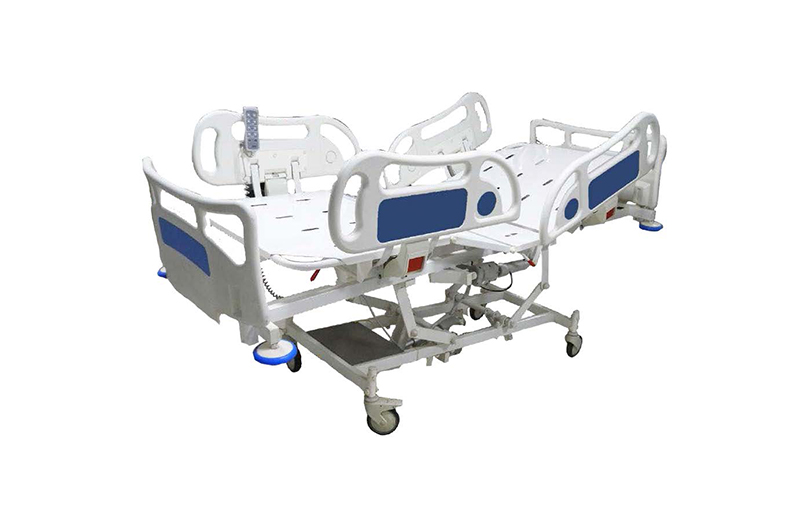

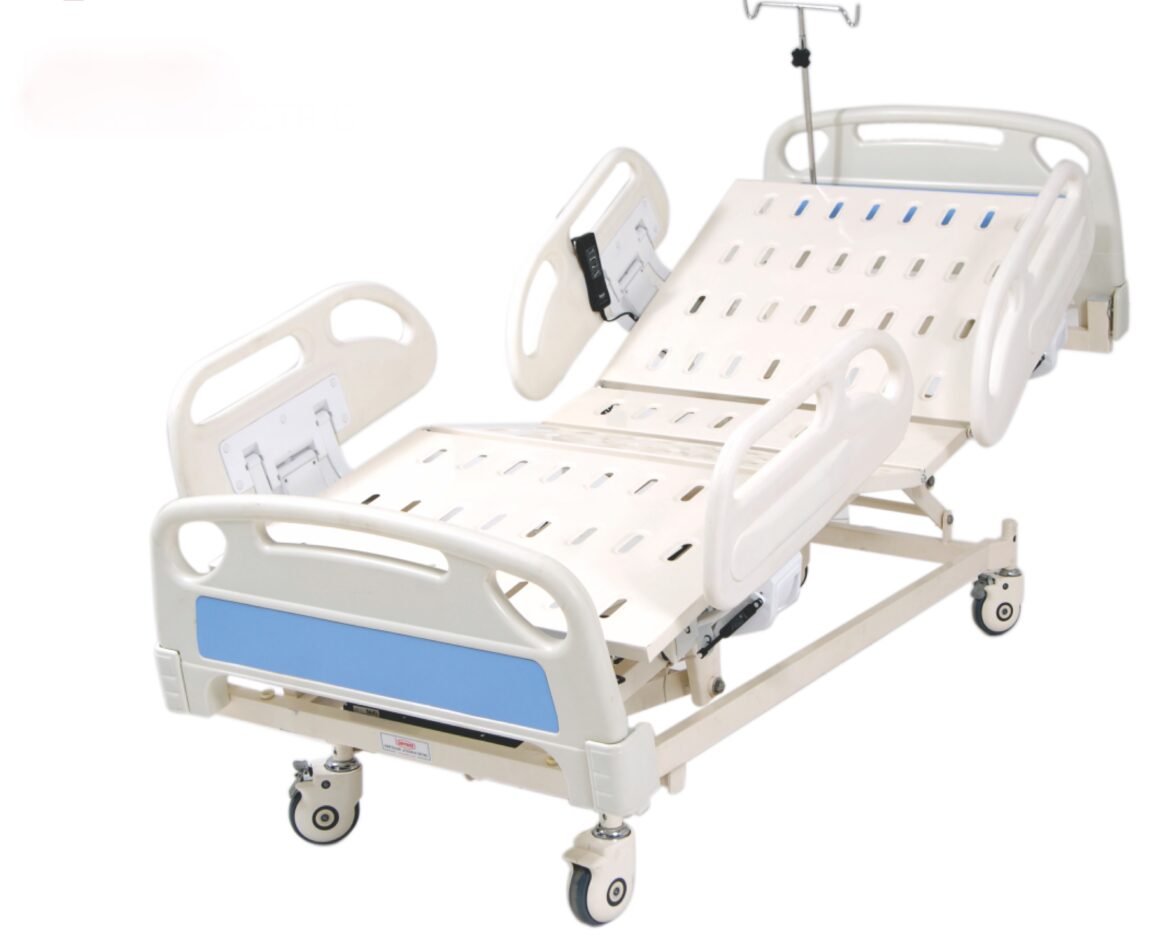

Five Functions Electric ICU Bed High Quality - XL-D05

Five Functions High-Quality Electric ICU Bed

Specification of Five Functions Electric ICU Bed

1. What is an electric hospital bed?

Generally, it is a hospital bed that required a source of power by electric motors for health care.

It is designed to consider patients with difficulty who have to make adjustments to the bed by themselves while on it.

2. Full-Electric VS Semi-Electric Hospital Bed

A full-electric hospital bed can achieve all of its adjustments by electric motors.

Adjustment of the backrest, thigh rest, height, Trendelenburg & reverse Trendelenburg is controlled through a hand controller electrically.

It offers convenience and comfort for patients and nursing staff to put the bed in a required position.

A semi-electric hospital bed (as well as with motors) can offer adjustment of the backrest, and thigh rest, not for the height, meaning that nursing staff or patients have to achieve adjustable height by crank mechanism.

Technical Parameters

Dimensions(L*W*H)   (with side rails and head&foot end): L2170* W990*H430 -690 ± 10 mm

Weight of bed(depending on equipment)  : 110 kg

SWL-Safe Working Load: 175kg

Standard Configuration:

Medical motors	4 pcs
Covered swivel castors with brakes	4 pcs of 5 inch
Control box	1 piece
Hand remote control	1 piece
Head & Foot end	1 pair
Side rails	1 pair(PP plastic)
S.S. IV Pole	1 piece
Urine hooks	4 pcs



Accessories Options
