Electrocardiograph 6 Channel Biocare IE-6 ECG Machine

Electrocardiograph 6 Channel Biocare IE-6 ECG Machine

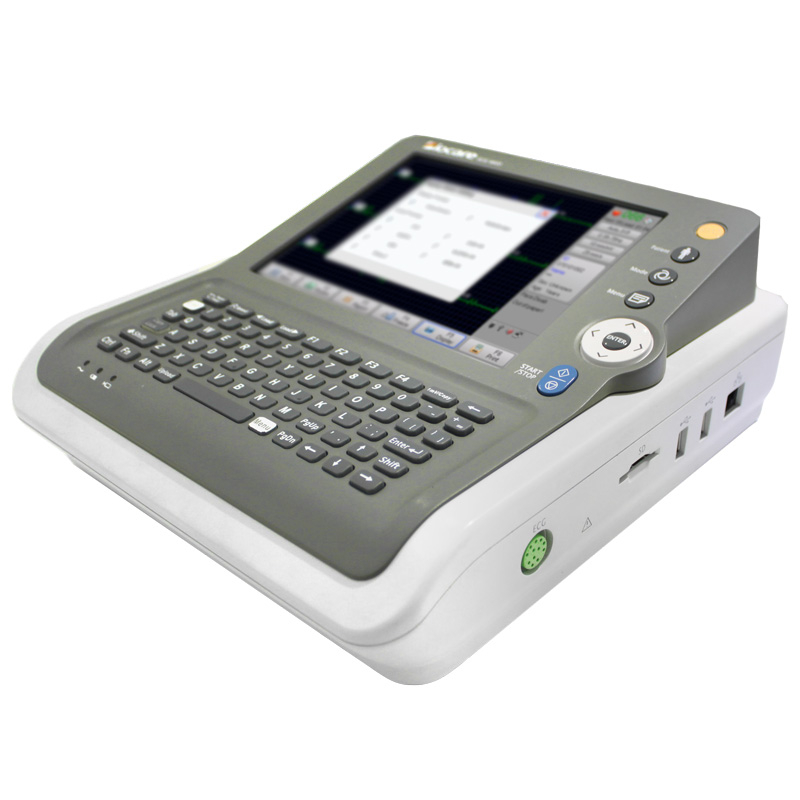

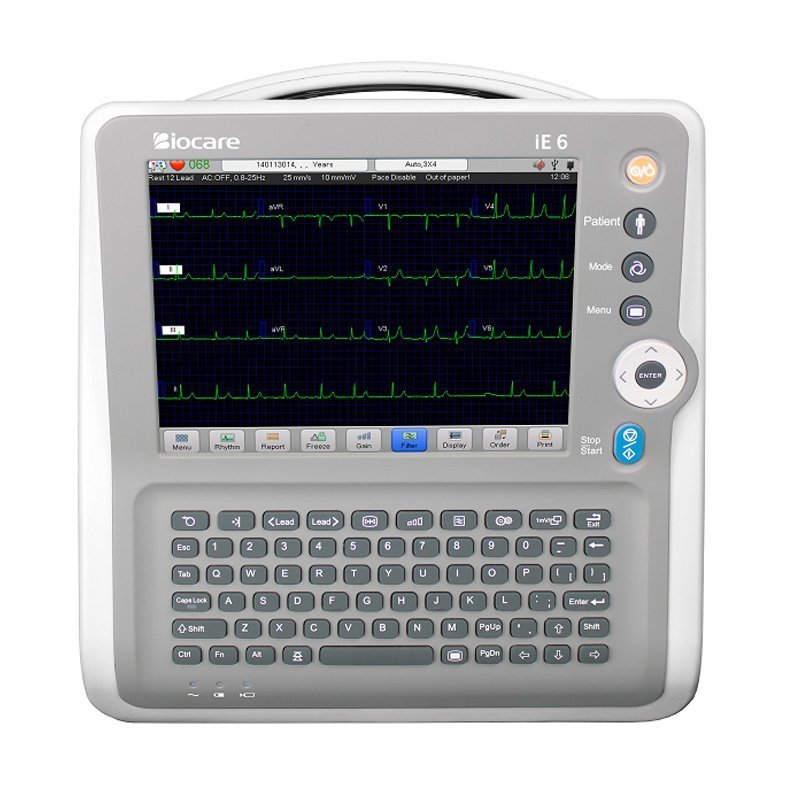

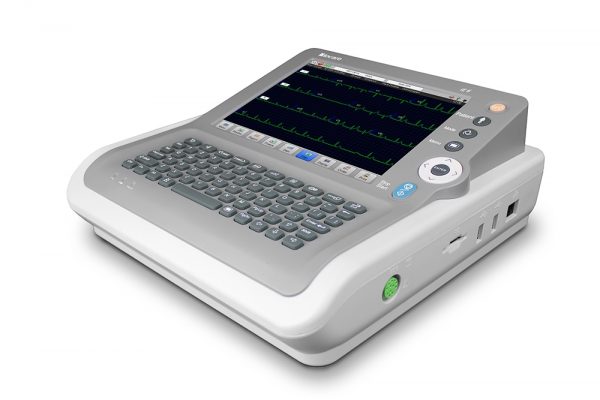

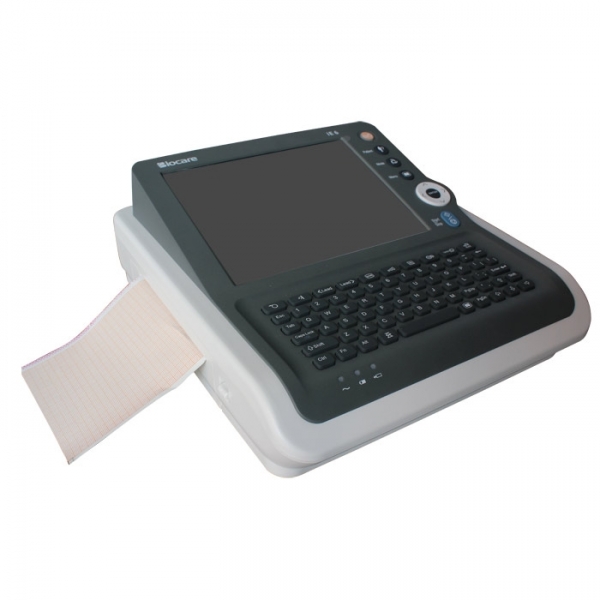

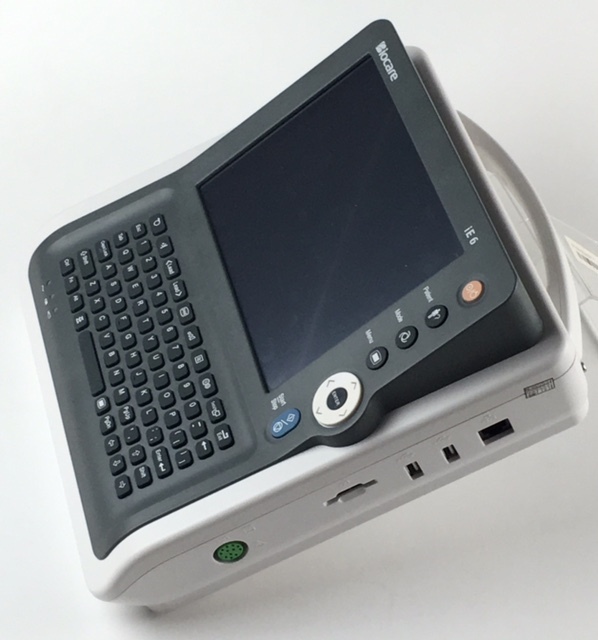

The Biocare IE-6, 6-lead ECG machine is a handy, mobile resting ECG device that is easy to use, thanks to its touchscreen display, alphanumeric keyboard, and practical shortcut buttons. The large internal storage offers space for up to 3,000 ECGs and the collected data can be immediately printed onto 112 mm wide paper via the integrated thermoprinter. The defibrillation protected Biocare IE-6 with evaluation and interpretation, provides a simultaneous presentation of up to 12 leads on an 8 inch LCD screen and offers 3 lead modes (auto, manual and rhythm).
Product Details



• 6-lead ECG machine
• Model: Biocare IE-6
• High-resolution 8″ TFT-LCD touchscreen display
• Simultaneous presentation of up to 12 leads
• With pacemaker recognition
• Defibrillation protected
• Various modes: auto, manual, rhythm
• AC-, deep pass- and baseline shift filters
• Includes evaluation and interpretation
• Particularly easy to operate
• With practical shortcut keys
• The alphanumeric keyboard allows for quick input of patient data
• Settable standby mode
• Large, integrated storage for up to 3,000 ECGs
• With integrated thermoprinter for printing on 112 mm wide paper
• Various connection options (SD Card, USB)
• 15° angled display – for particularly easy readability
• With integrated lithium battery (2.5 hours of continuous operation with a full charge)
• Warning alarm for detached electrodes or low battery life
• Automatic printout upon arrhythmia recognition
• Memory and data transfer in the following formats: JPG, BMP, PDF, XML, DICOM
• Frequency response: 0.05
• Minnesota code appears as a reference on the printout
• Dimensions: 25.7 x 29.1 x 10.6 cm (L x W x H)
• Weight: approx. 2.3 kg



Delivery Contents:

• Biocare IE-6, 6-lead ECG machine
• Patient cables
• Clamp, vacuum and adhesive electrodes
• Grounding cable
• Power cable
• Power supply
• ECG paper
• User manual
