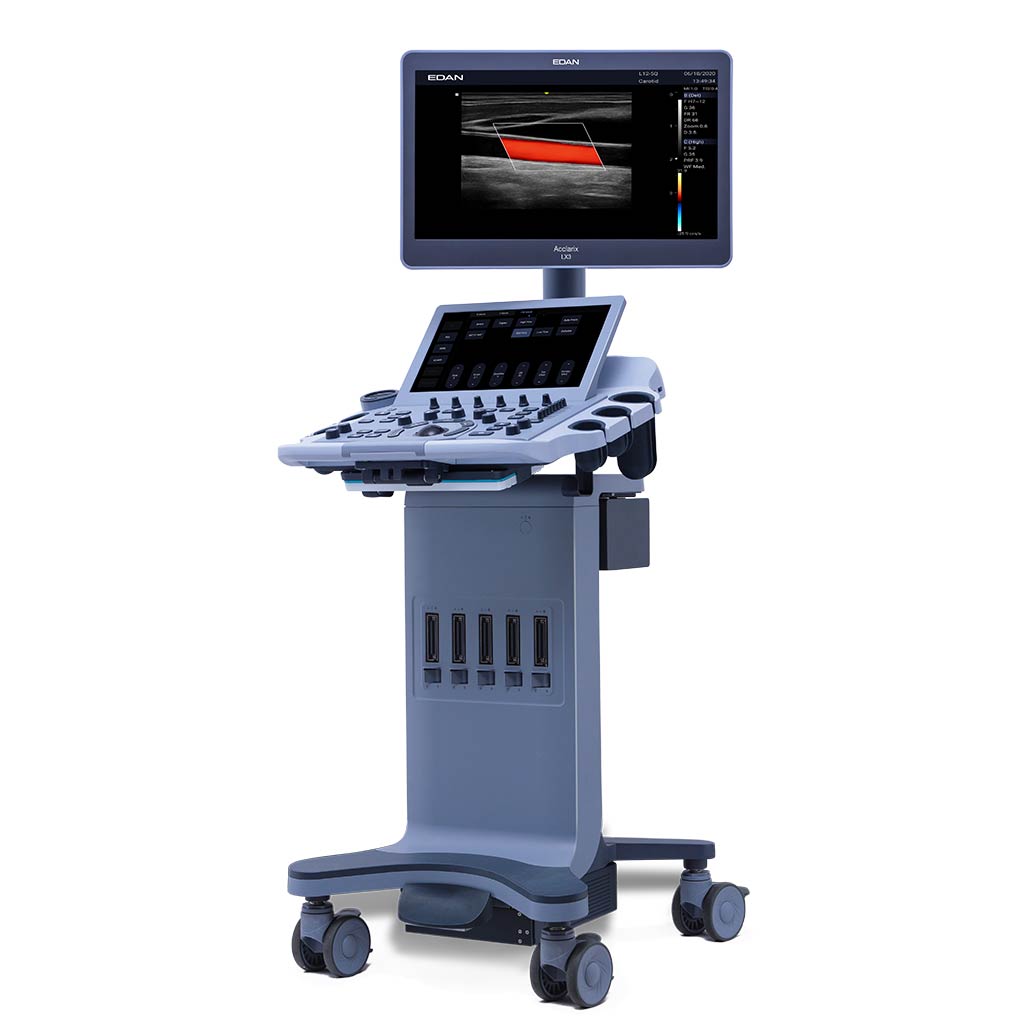

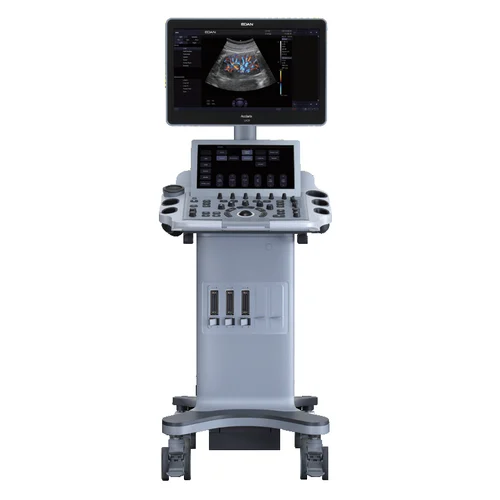

Edan 3D/4D Acclarix Lx25 Diagnostic Ultrasound System
৳ 1,050,000৳ 1,150,000 (-9%)
- Machine Type 4D Colour Doppler Ultrasound Machine
- Brand EDAN
- Model ACCLARIX LX25
- Portable No
- Measuring Range Circumference Volume Velocity Heart Ratio Area Celsius (oC)
- 21.5 high-resolution TFT LCD monitor
- 14.1 Display Touch Screen
Frequently Bought Together
- This item: Edan 3D/4D Acclarix Lx25 Diagnostic Ultrasound System(৳ 1,050,000
৳ 1,150,000(-9%)) - BIOELAB AS-280 Automated Clinical Chemistry Analyzer(৳ 600,000
৳ 650,000)

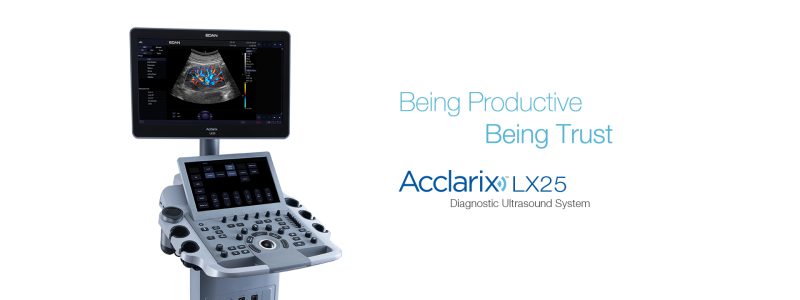

Edan 3D/4D Acclarix Lx25 Diagnostic Ultrasound System
Integrated with a compact appearance, cutting-edge technology, and intelligent workflow, Acclarix LX3 VET is to provide more valuable innovation. Its excellent image performance plays an important role in the prevention and early detection in primary medical care, enriching the diagnostic application and enhancing the clinical value
Distinctive Design
1. 5 transducers sockets configuration meets comprehensive clinical needs
2. Integrated user interface with ergonomic height adjustment design
3. Built-in batteries for back-up and ultra-long continuous scanning time
Distinctive Design
1. 21.5-inch high-resolution LCD medical monitor for multi-dimensional viewing angle
2. 14-inch high sensitivity touch screen releasing efficient operation at fingertip
3. Humanized detachable gel warmer design
Intelligent Workflow
1. Optimized — One key optimization in B/Color/PW
2. PW auto trace — One key in automatic measurement
3. High-capacity storage with USB transfer
4. eTouch — Efficient ‘Swipe’ gesture control
5. eLearn — User-friendly tutorial software
6. Innovative user interface layout with accurate function division
Monitor:-
- 21.5 high resolution TFT LCD monitor
- Tilt: 30 upward, 90 downward
- Swivel: +/-90 , View angle: right 89 left 89,up 89,down 89
- Built-in stereo speaker ,- Brightness and Contrast adjustable
- Touch screen
- 14 Touch screen
- Gesture-control
- User configurable UI
- Support QWERTY keyboard for text input
- Brightness adjustable
- Transducer port
- 3 active ports
- 5holders (1 dedicated for endocavity transducer)
- Electronic Transducer Selection
Control Panel:-
- Interactive back-lighting
- Hard Keys provides tactile feedback
- Programmable store keys
- Physical trackball
- 8 segment TGC sliders
- Wireless keyboard
Connectivity:-
- Verify SCP ,Static image store SCU
- Ultrasound multi-image store SCU
- Four levels of compression ,Data transfer options
- Removable media ,In-progress network storagein background
- Auto-transfer in background at exam end Manual-transfer in background on demand
- 6 USB Ports (4USB 2.0 and 2 USB 3.0)
Video out:
- VGA,DVI, S-video: PAL/NTSC, -Ethernet.
- ECG port (inactive)
- Standard DVD-R/RW
- Wi-Fi
- DICOM Modality Work list ,- DICOM Structured Report: OB, GYN, Cardiac, and Vascular
- DICOM store to multiple networks ,- Non-DICOM network transfer(FTP transfer) in background
- Transfer management UI: review transfer task status, delete a transfer task
- DICOM Print, Support printing image via the DICOM printer connected to a DICOM server.
- DICOM MPPS
- Biopsy guide : Optional Available .
Imaging storage:-
- 120 GB SSD
- Storage up to approximately>400,00 lossless single frames
- Compression types of static image and clip: lossless, high, mid, low
Image processioning:-
- Tissue Adaptive Imaging(TAI)
- Adaptive Doppler imaging Frequency Compounding Imaging ,- Adaptive Spatial Compounding Imaging ,- Harmonic Imaging ,- Adaptive Speckle Reduction Imaging (eSRI)
- Spectrum Enhancement ,- B mode Auto Optimization ,- Color mode Auto Optimization
- PW mode Auto Optimization
- Digital Multi-Beam Beamforming -Up to 2949120 digital channels
- Trapezoid Imaging for linear transducer
- B Steer ,- Pan Zoom ,- Spot Zoom
- Full screen imaging.
- Needle Enhancement Visualization Imaging

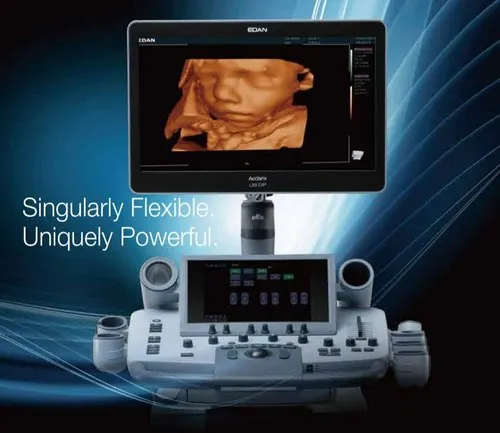

3D/4D :-
- Acquisition Modes: 4D, Static 3D
- Visualization Modes: Volume Rendering, PRs, Multi-Slice
- VOI adjustable: curve cut plane
- Render Modes: Surface, MIP, X-Ray
- 3D Clip (2D capture of 3D images)
- Cut
- Cut tool: trace, box, erase
- Function: undo, undo all, redo
- Display formats: Single 3D, Dual(A-plane + 3D), Quad(A/B/C Planes + 3D)
- Parameters for 3D: Threshold, Smooth, Brightness, Contrast, Tint
- eFace: Edan Auto show face
- Save and edit volume data set
Post-Processing :
- B Mode: gain, TGC, zoom, dynamic range, eSRI, colorize, map
- M Mode: gain, TGC, dynamic range, colorize, map
- Color Mode: zoom, color map, invert
- PW/CW: gain, dynamic range, colorize, map, baseline, angle, invert
- Support review images and reportof an exam
- Support export images as BMP , AVI or DCM format to removable disk or DVD-R/RW
- Support export images as DCM format to DVD-R/RW
- Support import/export exams(including patient information, images, measurement results)
- Support comments, body mark and measurements in revi
