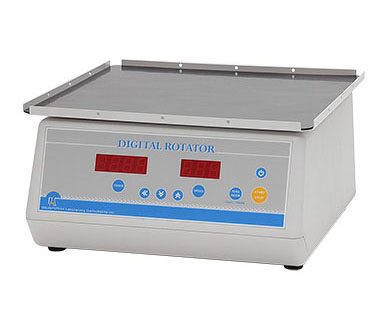

Digital Laboratory Rotator DSR-23D

Digital Laborator DSR-2100D Flat Rotator

Digital Rotator DSR-2100D-N / DSR-2800D-N are widely used in VDRL, RPR, and EIA test. Digital Rotator is equipped with digital display to indicate present speed and the remaining time.

* Wide used in VDRL, PRP, and EIA test.

* Stable and quiet operation.

* Digital Rotator DSR-2100D-N/DSR-2100D-N has a digital display that can display the present speed value and remaining time.

* Digital timer can set from 0 to 99 hours and 59 seconds.

* With variable speed, timer control, continuous operation.

* Quality certification: ISO 9001, ISO 13485.

Specification

Model DSR-2100D-N DSR-2800D-N Platform dimension 230x230mm 280x280mm Speed 20~240rpm Time mode Continuous mode / Timed mode (99 hours 59 minutes digital timer) Display Digital display for present speed value and the remaining time Orbital diameter 20mm Load capacity 2.0Kg at the speed of 20~150rpm; 1.0Kg at speed of 151~240rpm Accessory 1 pc of spring Weight (N.W./G.W.) 3.9 / 4.7 Kgs 4.2 / 5.0 Kgs Overall diameter W260xD295xH140mm W280xD295xH140mm Power Supply AC 110V 50/60Hz (220V 50/60Hz available)
