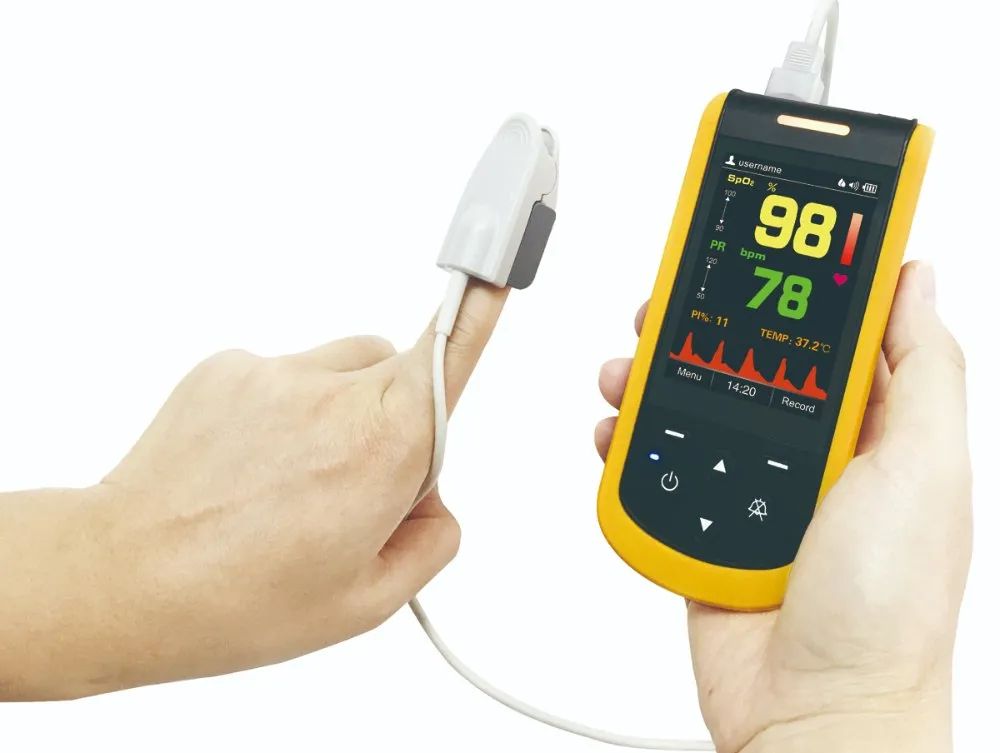

Creative SP-20 Color LED SPO2 Handheld Pulse Oximeter

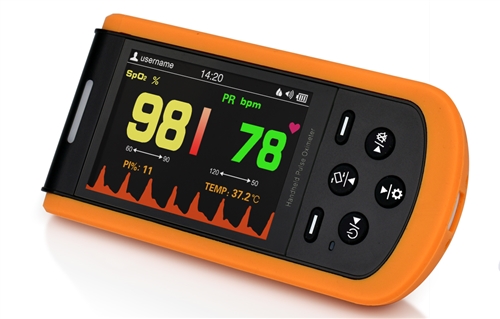

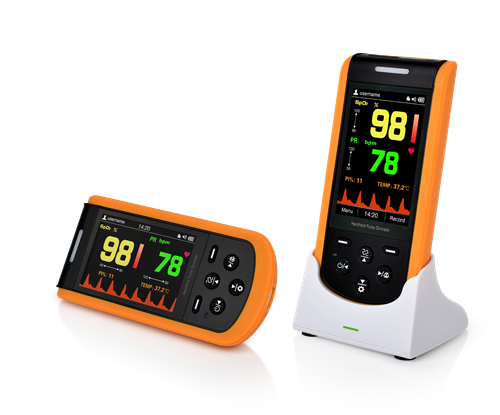

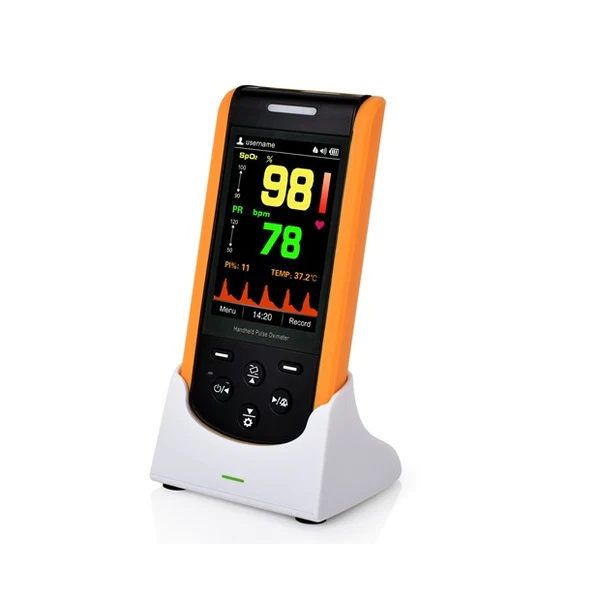

Creative SP-20 Handheld Oximeter can measure SpO2, PI, waveform, and PR for adults, pediatrics, and neonates. With a 3.5” auto rotation TFT display and large data storage, it is user-friendly both in the clinical scenario and for hospital, clinic, office, and home use. The SP-20 display automatically rotates for vertical or horizontal viewing. On the backside of the oximeter, there is a stand that can be used to hold the oximeter while on its side.
You can choose between two data display modes on the SP-20 to review oxygen saturation and heart rate data without the need to transfer the data to a Windows PC for review.
- Compatible with Nellcor, Nonin & BCI DB9 probes
- FDA Approved
- Probes for Neonates, Infants, Pediatrics, Adults
- Ear, Forehead, Wrap sensor options available
- Free Android and iPhone ViHealth App – Stream and Record SPO2 Data
Spot-Check Record: a list showing the recording time, SpO2 value and pulse rate value for each spot-checking event
Trend Record: trend graph of SpO2% and heart rate for the data recorded
Brand | CREATIVE |
Model Name/Number | SP-20 |
SpO2 Measuring Range | 0%~100% |
SpO2 Measuring Accuracy | +-3% range from 70% to 100% |
Pulse Rate Measuring Range | 30bpm~250bpm |
Pulse Rate Measuring Accuracy | +-2bpm |
Temperature Measuring Range | 32 ~43 degrees |
Temperature Measuring Accuracy | +-2 DegreeC |
Temperature Measuring Time | <5 seconds |
Temperature Measuring Probe | 0.2%~20% |
Measuring Mode | Continuous or Spot check |
Data Storage | Up to 500 Hour |
Display | 3.5’inch color TFT display with rotation |
Power Supply | 2000mAh lithium battery |
Charging | Charging stand or USB cable |
Dimension | 158x73x25mm |
Net Weight | 230g |
Data Upload | USB cable or wireless |
Operating Temperature | 5 to 40 degrees |
Operating Humidity | 15% to 93% |
