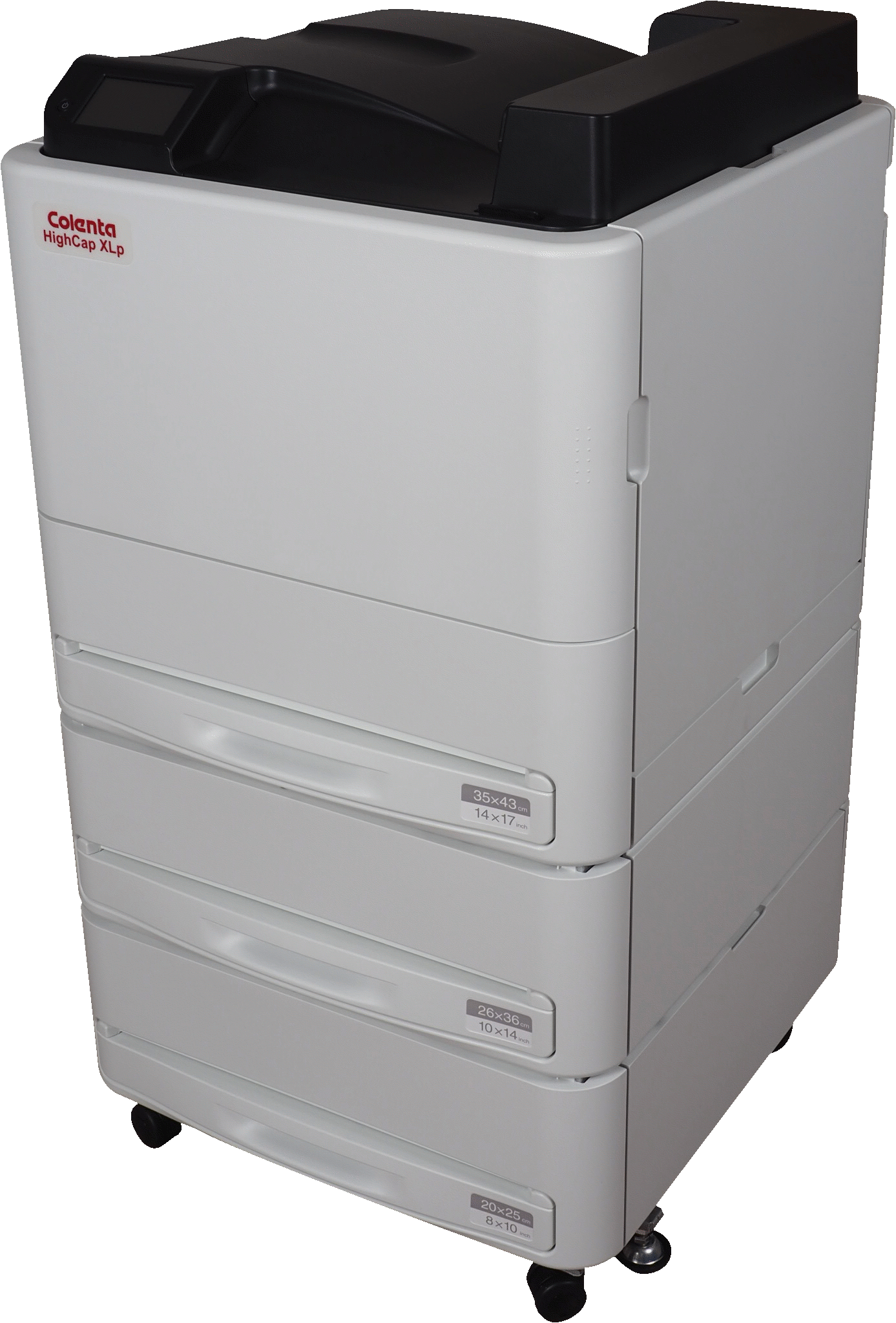

COLENTA CR Dicom Printer HighCap XLp

COLENTA CR Dicom Printer HighCap XLp

COLENTA Dry Laser Imager – High Efficiency – Mammo Applicability

• Processing Capacity: up to 110 films/hr, size 35×43 cm (14″ x 17″) helps to reduce patient’s waiting time, increasing efficiency of examination workflow.
• Printing Resolution – Pixel Size: up to 508 dpi (50µm), allows printout of Mammo Images
• Two Film Tray Online : 3 universal film trays enabling printing of 3 different sizes at the same time
• Colenta DICOM Printer HighCap XLp to be used with Colenta Dry Laser Films to obtain a maximum quality printout of examination images.

HighCap XLp Specifications :

• Recording method
  Laser exposure thermal development system
• Applicable film
  MEDIPHOT DRY IMAGING FILM DL (100/150 sheets/pack)
  35cm x 43cm (14” x 17”), 26cm x 36cm (10” x 14”),
  25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
  MEDIPHOT DRY IMAGING FILM DLM for Mammography            (150 sheets/pack)
  26cm x 36cm (10” x 14”), 25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
• Film loading
  Daylight film loading
• Film magazines
  Up to 3 trays online
• Processing Capacity
  approx. 110 sheets/hour 35cm x 43cm (14” x 17”)
  approx. 160 sheets/hour 20cm x 25cm (8” x 10”)
• Pixel size
  50 um (508 dpi) / 100 um (254 dpi)
• Recording gradation
  14 bits (16383)
• Image memory
  1GB
• Density Adjustment
  Automatic density correction
• Input channels
  DICOM network input (max. 10 simultaneous connection associations)
• Dimensions (WxDxH)
  610mm x 630mm x 1125mm (24” x 25” x 44”) – without sorter
• 610mm x 630mm x 1425mm (24” x 25” x 56”) – with sorter
• Weight
  125 kg (275.6 lbs.)
• Power Supply Conditions
• Single phase 50-60Hz, AC100-240V ±10%
• Operating Conditions
• Temperature: 15 to 30°C (59 to 91°F)
  Humidity: 15 to 70% rH, non-condensing
  Atmospheric pressure: 750 to 1060 hPa
