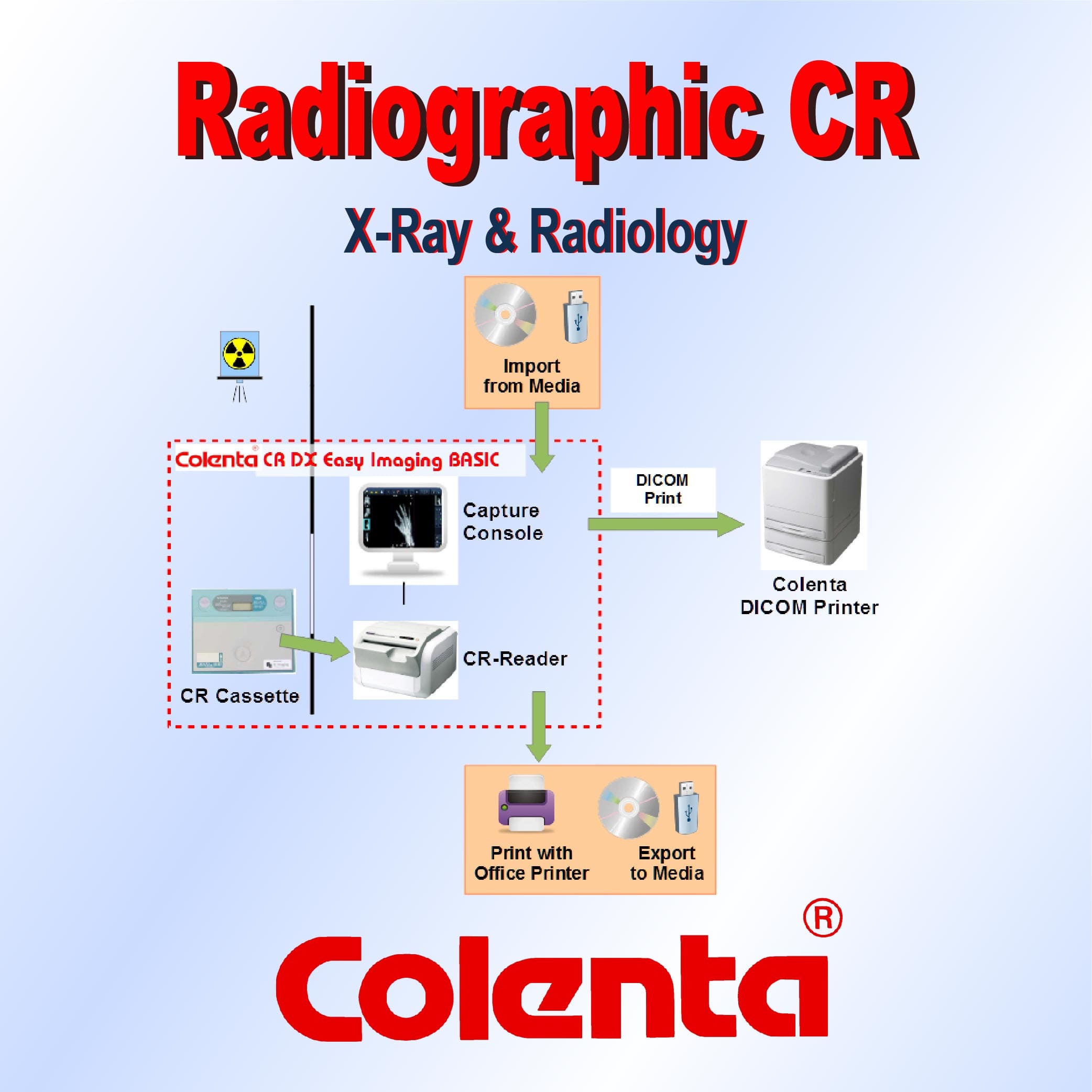

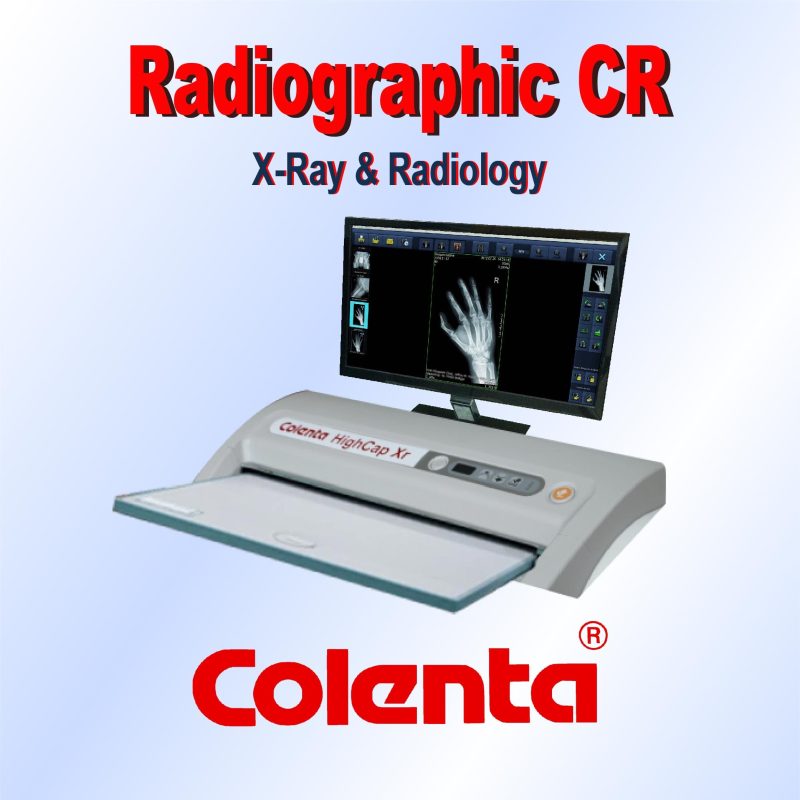

Colenta CR (Computed Radiography) System
৳ 1,350,000৳ 1,400,000 (-4%)
- Colenta CR is a table-top reader unit that boasts a world-class high processing speed of 73 IPs/hour.
- In the high-speed mode (5 pixels/mm), throughput is enhanced by almost 70% compared with other CR (only for IPs of 14″ × 17″ and 14″ × 14″ ).
- As with all Colenta equipment, Colenta CR is easy to operate.
- It will help reduce patient waiting time and greatly increase the efficiency of the examination workflow.
- Colenta CR, with its light and compact tabletop design, can be placed on a desk, shelf or anywhere space is limited.
- As this is a fully digital reader, neither a darkroom nor automatic processor is required.
- Colenta CR can always be installed in the space formally used by a chemistry-based processor.
- Brand COLENTA
- Origin AUSTRIA
Frequently Bought Together
- This item: Colenta CR (Computed Radiography) System(৳ 1,350,000
৳ 1,400,000(-4%)) - Jumong General Wall Mounted X-Ray(৳ 2,450,000
৳ 2,600,000)
Colenta CR (Computed Radiography) System

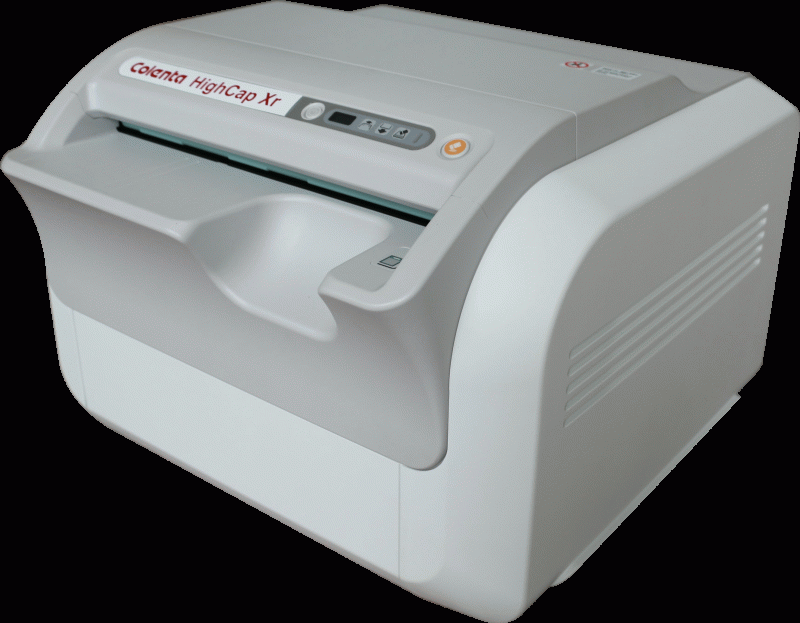

DX Easy Imaging CR Retrofit Kit HighCap Xr
Processing Capacity
Up to 47 IPs/hr in size 14“x17“ (35cmx43cm). The Colenta DX Easy Imaging CR Retrofit Kit HighCap Xr is a table-top reader unit that boasts a world-class high processing speed of 73 IPs/hour*. As with all Colenta equipment, the DX Easy Imaging CR Retrofit Kit HighCap Xr is easy to operate. It will help to reduce patient waiting time and greatly increase the efficiency of the examination workflow.
*) The above value is for IPs of 8” x 10” (18cmx24cm)
Reading Resolution – Pixel Size
One of the reader’s key components is the Imaging Plate, or IP, which is used instead of the X-ray film to easily digitize X-ray images.
Space-Saving Design
All of Colenta’s equipment the Colenta DX Easy Imaging CR Retrofit Kit HighCap Xr is easy to operate. It will help to reduce patient waiting time and greatly increase the efficiency of the examination workflow.
The minimum requirement of PC is core i5 processor with 3.2 GHz clock speed & 4GB RAM. 2 x 500 GB SATA Harddisk & RAID supported motherboard are required. 2 x GBit LAN Controller and VGA graphic controller with 24bit color depth.
Specifications
| Image Plate General X-ray | 14” x 17” (35cm x 43 cm), 14” x 14” (35cm x 35 cm),10” x 12” (24cm x 30cm), 8” x 10” (18cm x 24cm), 15cm x 30cm |
| Processing Capacity | 14” x 17” (35cm x 43 cm) up to 47 IPs/hr8” x 10” (18cm x 24cm) up to 73 IPs/hr |
| Time Required for IP Feed/Load | Min. 49 sec |
| Time to Start on Display | Min. 33 sec. |
| Grayscale resolution | 12 Bit |
| Reading Specification | 5 pixel/mm, 10 pixel/mm, 20 pixel/mm (Mod. XMr) |
| Pixel Size | 100um, 50 um (mod. XMr) |
| Number of Stacker | 1 |
| Network | 10 Base T/100 Base-TX |
| Weight | 39 kg (86 lbs.) |
| Dimensions (WxDxH) | 560mm x 540mm x 392 mm (22” x 21” x 15”) |
| Power Supply Conditions | Single-phase 50-60Hz, AC120-240V±10% |
| Environmental Conditions | Temperature: 15-30°CHumidity: 40-80%RH (No dew condensation) |
This equipment is a Class 1 laser product (IEC60825-1:2001).
Specifications are subject to change without notice. All brand names or trademarks are the property of their
respective owners. In some countries, regulatory approval may be required to import medical devices.
Buy 500mA X-Ray Machine lowest price in Bangladesh

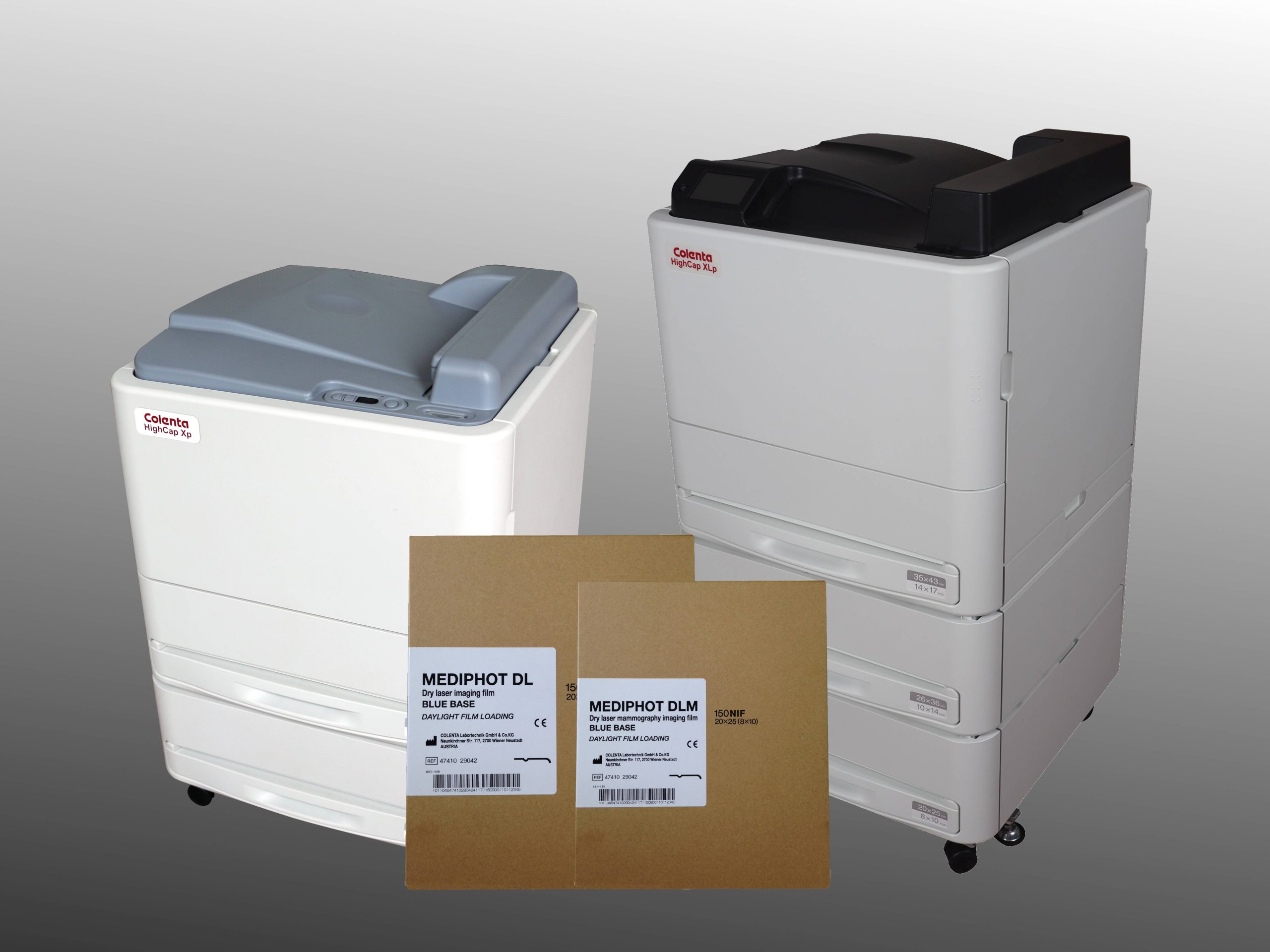

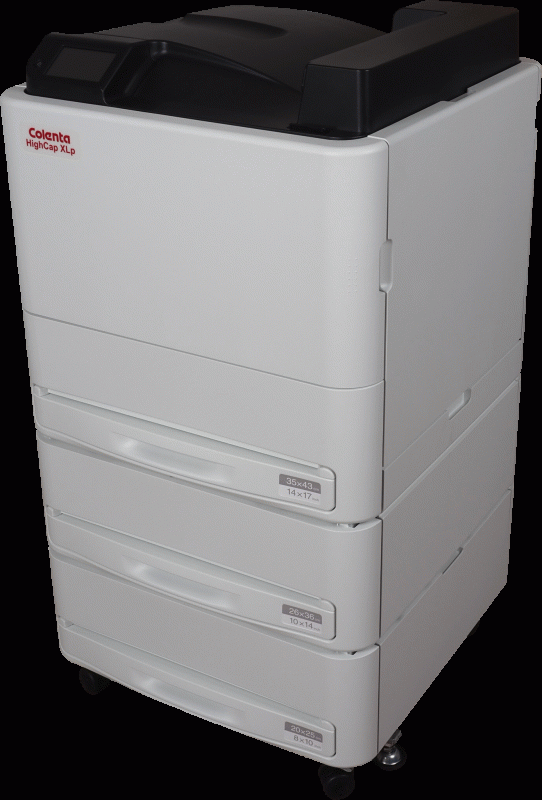

COLENTA Dicom Printer HighCap XLp
COLENTA Dry Laser Imager – High Efficiency – Mammo Applicability
- Processing Capacity: up to 110 films/hr, size 35×43 cm (14″ x 17″) helps to reduce patient’s waiting time, increasing efficiency of examination workflow.
- Printing Resolution – Pixel Size: up to 508 dpi (50µm), allows printout of Mammo Images
- Two Film Tray Online : 3 universal film trays enabling printing of 3 different sizes at the same time
- Colenta DICOM Printer HighCap XLp to be used with Colenta Dry Laser Films to obtain a maximum quality printout of examination images.
HighCap XLp Specifications :
- Recording method
Laser exposure thermal development system - Applicable film
MEDIPHOT DRY IMAGING FILM DL (100/150 sheets/pack)
35cm x 43cm (14” x 17”), 26cm x 36cm (10” x 14”),
25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
MEDIPHOT DRY IMAGING FILM DLM for Mammography (150 sheets/pack)
26cm x 36cm (10” x 14”), 25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”) - Film loading
Daylight film loading - Film magazines
Up to 3 trays online - Processing Capacity
approx. 110 sheets/hour 35cm x 43cm (14” x 17”)
approx. 160 sheets/hour 20cm x 25cm (8” x 10”) - Pixel size
50 um (508 dpi) / 100 um (254 dpi) - Recording gradation
14 bits (16383) - Image memory
1GB - Density Adjustment
Automatic density correction - Input channels
DICOM network input (max. 10 simultaneous connection associations) - Dimensions (WxDxH)
610mm x 630mm x 1125mm (24” x 25” x 44”) – without sorter - 610mm x 630mm x 1425mm (24” x 25” x 56”) – with sorter
- Weight
125 kg (275.6 lbs.) - Power Supply Conditions
- Single phase 50-60Hz, AC100-240V ±10%
- Operating Conditions
- Temperature: 15 to 30°C (59 to 91°F)
Humidity: 15 to 70% rH, non-condensing
Atmospheric pressure: 750 to 1060 hPa
