BT 550 Infant Warmer - Bistos

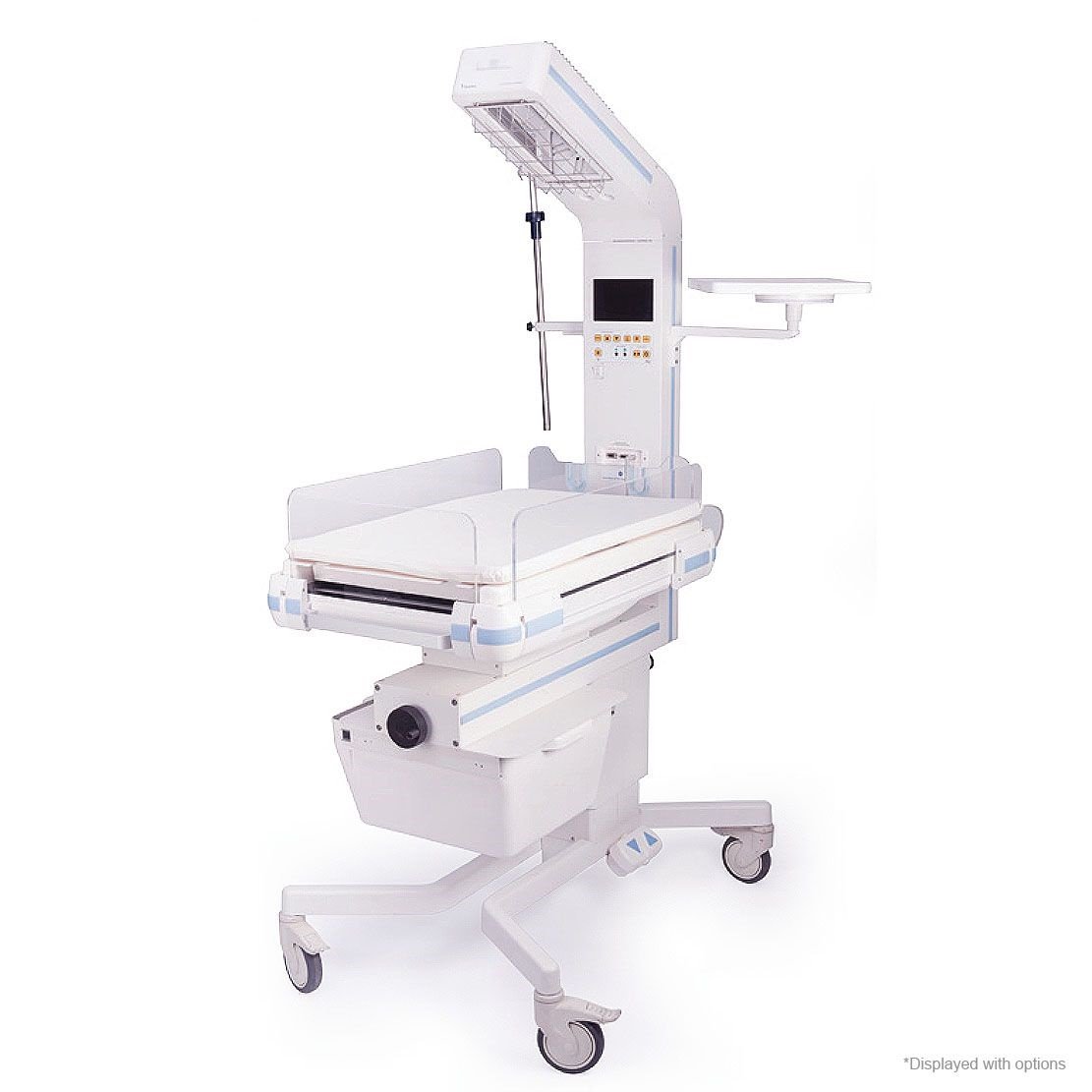

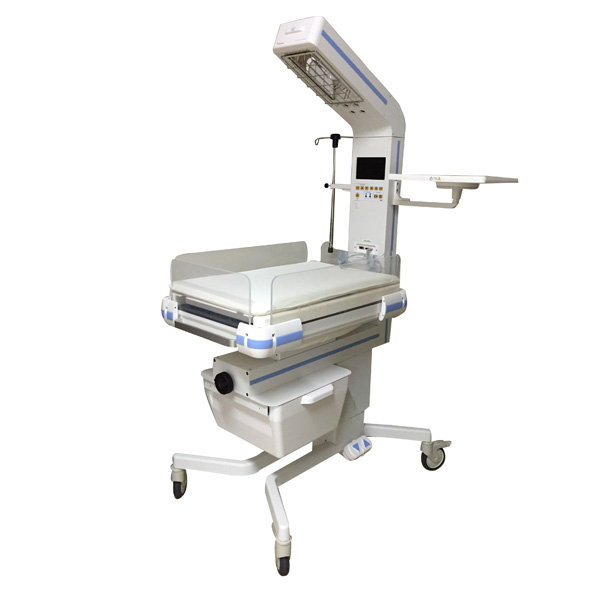

Bistos Infant Warmer BT-550

The BT 550 Infant Warmer is intended to emit regulated, uniformly distributed overhead heat to premature infants and other newborns who are unable to regulate their body temperature effectively. This system should be used prior to any child treatment or operation.

• As a newborn warming unit, it offers radiant warmth from above and has a newborn mattress.
• Usage with 220 Volt 50 Hz AC voltage
• Placed at the side of the unit with shelving and brine poles
• Simple to travel with 4 wheels and with a brake that prevents at least 2 wheels
• The screen size is a TFT Color LCD, not less than 7 inches.
• The bottom of the operating bed has drawers for the storage of the equipment required.
• It is an IEC 60601-1, IEC60601-1-2, and IEC 60601-2-21 certified product.

Heating system

• As a newborn warming unit, it offers radiant warmth from above and has a newborn mattress.
• Usage with 220 Volt 50 Hz AC voltage
• Placed at the side of the unit with shelving and brine poles
• Simple to travel with 4 wheels and with a brake that prevents at least 2 wheels
• The screen size is a TFT Color LCD, not less than 7 inches.
• The bottom of the operating bed has drawers for the storage of the equipment required.

Temperature control system

• Used to position the computer in a state of readiness for use. Pre-warm mode device when turned on. The system will radiate heat for 5 minutes at 100 percent, after which the system will reduce heat for 10 minutes to 60 percent and then reduce it to 25 percent.
• A Servo Control or Baby Mode is available that can change the patient’s temperature from 34 to 38 degrees Celsius.
• A manual mode system is available which can change the temperature by heating the heater heat from 0-100 percent.
• Numbers represent the temperature of the patient and the temperature set on the display screen separately.

Specifications

Model		BT-550
Category		Infant Warmer
Temperature Control Mode		Pre-warm/Baby/Manual
Skin Temp.	Control	34-38°C
	Measurement	26 – 42 ±0.3°C
Heater	Type	Infrared
	Power	0 – 100% / 20 Level
	Control	600W
	Life Time	5,000 Hour
	Rotation	90°
APGA Timer	Setting	0 – 59 min. 59 sec.
	Beep	1, 5, 10 min.
Examination	Power	40W LED (10W x 4)
	Control	3 Level
	Illumination	> 7,000 lx
Scale * (Optional)	Measurement	0 – 10Kg ±10g
Masimo SpO2 * (Optional)	Measurement	1 – 100%
	Accuracy	± 3% (70-100%)
		Unspecified (0~69%)
	Pulse Rate Range	25 – 240bpm ±3bpm
Bed	Tilt* (Optional)	< 15°
	Tray	80 x 49 x 2cm
	X-Ray Tray	35 x 40 cm
Lifting Stand * (Optional)	Height	65 – 85 cm
IV Plate * (Optional)	Load Limit	11kg
IV Pole * (Optional)	Hook	2 Hook
Basket * (Optional)	Load Limit	10kg
Shelf * (Optional)	Load Limit	3kg
Oxygen Delivery * (Optional)		Regulator, Humidifier, Bracket
General	Display	7” TFC Color LCD
	Alarm	6 Events (Visual & Sound)
	Self Test	Power On
	Leveler	Bubble type
Dimensions	Standard (HWD)	1,890 x 1,027 x 690 mm
	With Lifting (H)	1,780 – 1,980 mm
Weight	Standard Configuration	83kg
	Full Configuration	98kg
