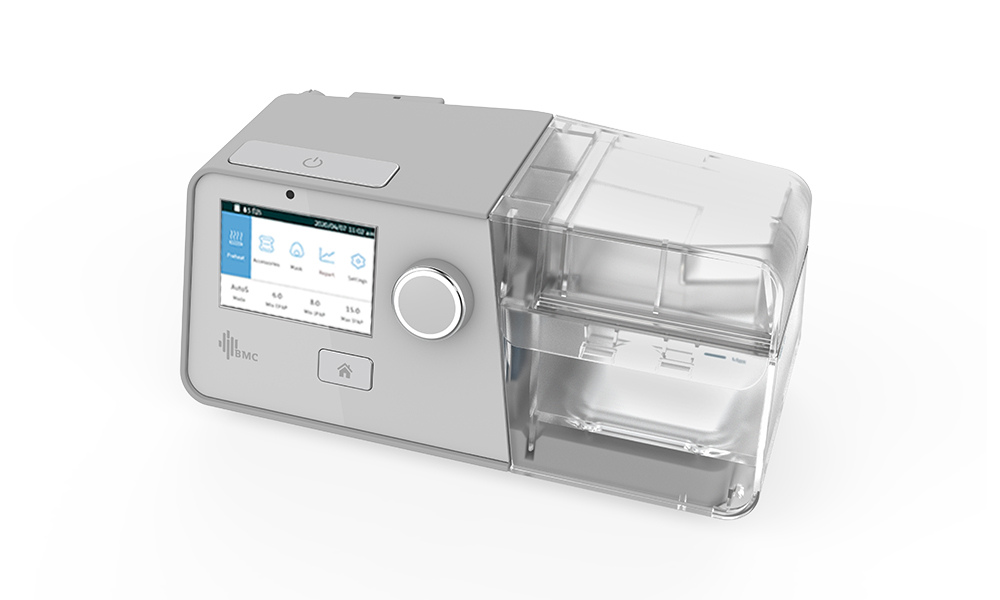

BMC G3 Lab BPAP Machine

Features

• S/T Mode
  The device follows the patient’s spontaneous breathing. However, if there is no inhalation for a certain period of time, the device will give forced ventilation to ensure the minimum ventilation volume.
• Target Tidal Volume Function
  According to the patient’s need, G3 can set the Target Tidal Volume and the device will automatically adjust the pressure support level to reach the preset tidal volume, so as to ensure a better ventilation effect. According to the patient’s need, G3 can set the Target Tidal Volume and the device will automatically adjust the pressure support level to reach the preset tidal volume, so as to ensure a better ventilation effect.
• Auto Leak Compensation
  The device detects the air leakage during treatment in real-time and adjusts the baseline to ensure correct triggering and related functions.
• Inspiratory time control
   Ti min and Ti max could be set independently, avoiding insufficient ventilation due to short inspiratory time. In the meantime, cases can be prevented where expiratory sensitivity is unable to meet due to a large leak.
• PM2.5 filter box
   Extra-sensitive users can filter finer dust and allergens with the PM2.5 filter box.
• SpO2 sensor
   Finger sleeve type
   Finger clip type

• Inspiratory / Expiratory sensitivity
   8 grades of I Sens and E Sens optimize the compliance of the device with the patient.
• Pre-heat
  The G3 series has a pre-heat feature, to warm your humidifier water up for ultimate comfort during cold, dry weather.
• Integrated heated tubing with intelligent Auto Humidity control
  Integrated heated tubing with intelligent Auto Humidity control gives G3 maximum moisture while ensuring condensation in the tubing is not an issue.
• Excellent silence performance
  BMC uses multi-stage noise reduction technology to ensure noise performance under 26 dB(A).

• The new humidifier design keeps the G3 compact and attractive.

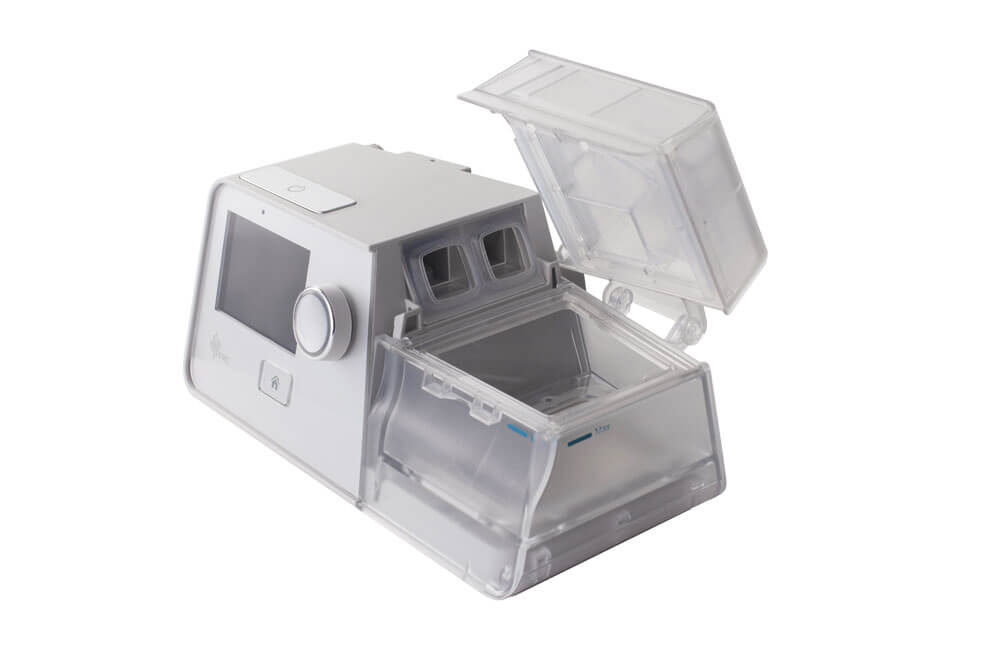

• The innovative PUSH water chamber is simple to use.
   Water can be added without removing the water chamber for ease of use.
• Humanized UI Design
   One button access to frequently used features
   A 3.5″ screen displays real-time data and waveform feedback in full color
• Accessory and supply reminder keeps your treatment healthy and effective.

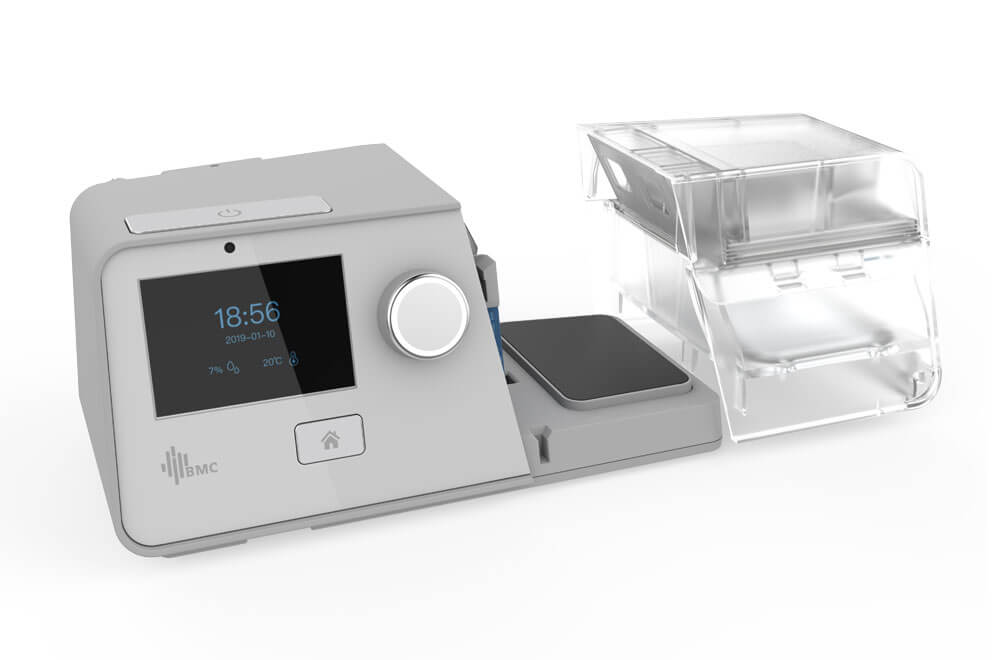

• G3 has a clock, temperature, and humidity monitor on stand-by, multi-purpose for convenience.

• SD Card
• Cellular
• WiFi
• iCode / iCode QR / iCode QR+

• Quick Report through Device Screen
• PAP Link App
• Cloud Platform
• iCode web version (www.bmc-icode.com)
• RESmart CPAP Data Analysis Software (PC software)
• RESmart Software web version (www.icodeconnect.com/quick/info)

• SpO2 Kit
• Cellular / WiFi Module
• Integrated Heated Tubing
• PM2.5 Filter Box
