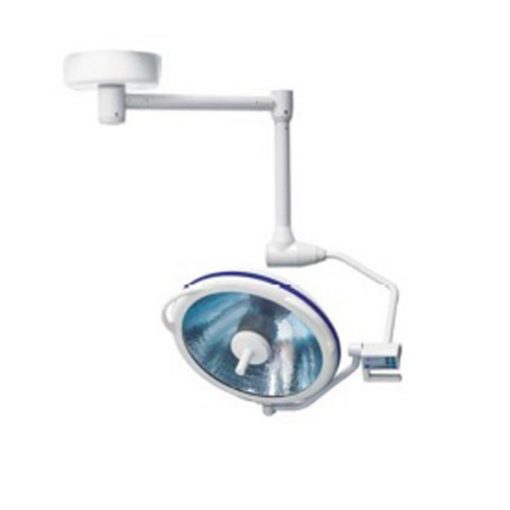

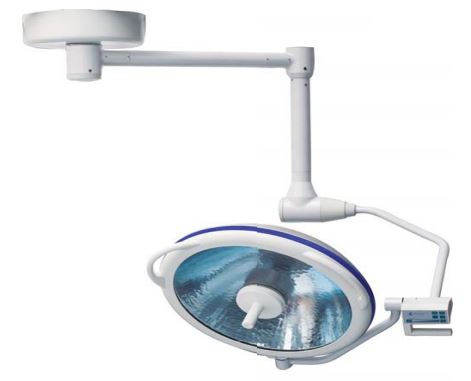

Biomax Dome Operating Light system provides superior performance to satisfy the ever-growing user needs in diverse surgical fields, including general surgery, microsurgery, E.N.T, OB/GYN, orthopedic and cosmetic surgery.
No matter what the application or conditions, the result is excellent illumination in the surgical field and optimum position adjustment, which have come to be highly valued by customers all over the world.
Technical Specifications:
– Series & Type : Toplite-P
– Light Source Technology: Blue theca plating, multi-facet reflection
– Dome Cover: Explosion-proof, rippled PCplastic
– Shape: Streamline shape, satisfying laminar flow purification requirement
– Arm & Joint: Standard
– Safety: Back-up bulb system, explosion-proof, etc.
– Illumination intensity (Lux)* : 120000~160000
– Color Temperature (K) : 4200±500
– Color Reduction Index (Ra) : 90±5
– Focusing Depth (mm) : >600
– Diameter light field (mm): 120~280
– Rated Power per Dome (W): 200
– Bulb spec. (V/W): 24 / 150
– Power supply: AC220~230V / 50~60Hz, 110V/60Hz
– Mounting options: Ceiling
– Installation Height: Standard room height at 2750~3100mm, customizable for 2400~2750mm
