3Ray Portable 6-channel Digital ECG Machine

3Ray Portable 6-channel Digital ECG Machine

• A portable 6-channel ECG machine
  ● Working modes: Manual/Auto/Arrhythmia Analysis modes
  ● 112mm、3/6 channel format recording
  ● Built-in rechargeable Li-ion battery
  ● Adaptor 110-230V, 50/60Hz AC power supply
  ● Real-time ECG waveform, 250 patients save/replay

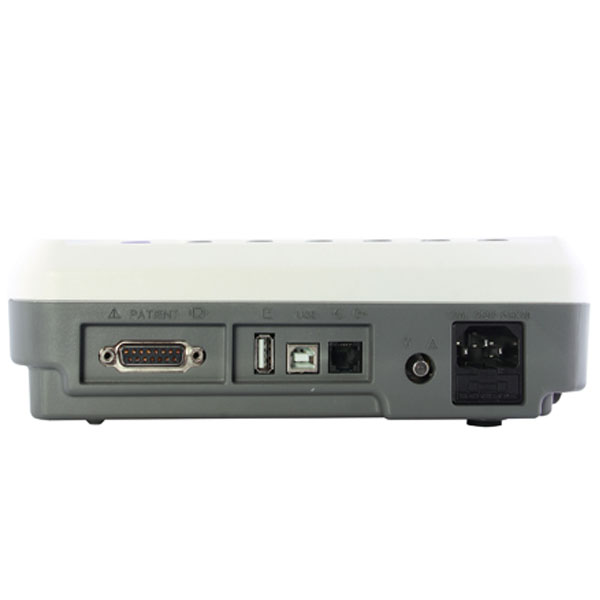

  ● Built-in USB/RS232 interface(ECGNET software Optional)

• Vcomin Portable 6 channel ECG Technical Specification

• Lead: standard 12 leads
• Input dynamic range: ±10Vpp
• Patient current leakage:＜10μA
• Calibrating voltage: 1mV±2％
• Voltage tolerance: ≥±500mV
• The time constant: ≥3.2s
• Frequency response: 0.05～160Hz(-3db)
• Noise level:＜15μVp-p
• Input circuit current: ≤0.05μA
• Sensitivity: 2.5, 5,10, 20mm/mV
• Inter-channel interference: ≤0.5mm
• Paper speed: 6.25,12.5, 25,50mm/s（±3％）
• Patient current leakage:＜10μA
• Filter:

  AC filter : 50Hz / 60Hz

  EMG filter : 25Hz / 45Hz

  Anti-drift filter : 0.15Hz(Adaptive)

• CMMR: ≥120dB (with AC filter)
• Sensitivity valve: ≤20μV
• Input impedance: ≥50MΩ
• Work modes: MAN、AUTO、ANALYSIS Modes
• Lead acquisition12bit/1000Hz（synchronously 12 leads）
• Input circuit: floating; protection circuit against defibrillator effect
• Display: 7 inch LCD

• Vcomin Portable 6 channel ECG Standard Configuration

• Patient cable                    1 set
• Limb electrode               4 sets
• Chest electrodes             6 sets
• Grounding cable             1 set
• Paper axis                       1 set
• Thermal paper               1 set
• Fuse                                  2 sets
• 3-cord power cord        1 set
• AC Adaptor                    1 set
